LAL36300 Schneider Electric Industrial Automation Components

What is the price of LAL36300?
Purchase the LAL36300 from Powermatic Associates at the price of $4,619.00. Order today.

Out if stock but available for backorder.

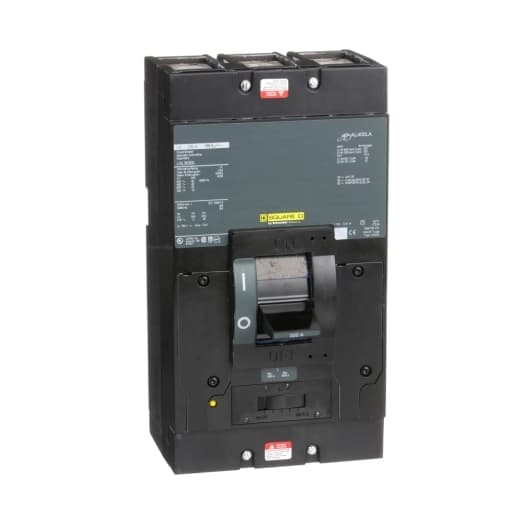

Square D by Schneider Electric LAL36300 is a Moulded Case Circuit Breaker (MCCB) from the PowerPacT LAL sub-range, designed with a PowerPact LA-Frame 600 TMD 3P 300A 600Vac 22kA with lugs 80% rated. It features a connection type with lugs on both load and line sides and operates with 3 poles (3P). This MCCB provides thermal protection for overload scenarios and magnetic protection for short-circuit conditions. It has a rated current of 300A, a rated insulation voltage (Ui) of 750 V, and a rated voltage (AC) of 600Vac 600Y/347Vac. The unit is designed for individual unit mount on plate, with a net height of 280 mm, a net width of 153 mm, and a net depth of 150 mm. It offers a degree of protection of IP40 and operates manually via a toggle. The protection settings include over-current fixed at 300A and short-circuit pickup current adjustable between 1500A and 3000A. Its rated operating voltage (Ue) is 600 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 300 AT, and the frame current rating is 600 AF. It has a short circuit breaking rating of 42kA at 240Vac, 30kA at 480Vac, 30kA at 480Y/277Vac, 22kA at 600Vac, 22kA at 600Y/347Vac, and 10kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (adjustable) with no display, and it falls under utilisation category A.
