LC1D09F7 Schneider Electric Industrial Automation Components

LC1D09F7 on Powermatic Associates
Schneider Electric

Part#:LC1D09F7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

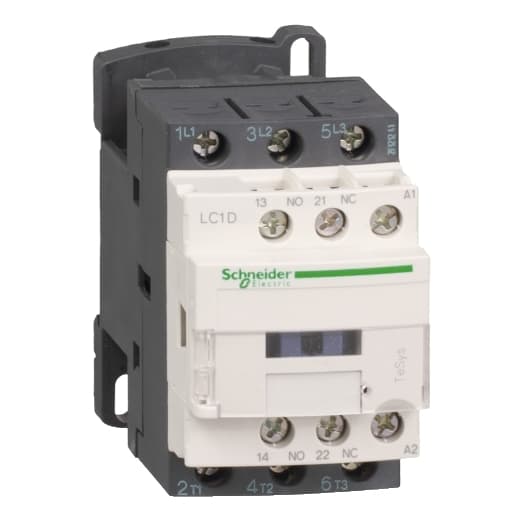

Schneider Electric LC1D09F7 is a magnetic contactor from the Deca sub-range, designed with screw connections and three poles (3P; 3NO). It has a rated current of 25A (AC-1) and 9A (440Vac; AC-3), with a mounting mode suitable for DIN rail installation. The net width of the contactor is 45 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 88-121Vac (110Vac nominal; 50Hz; 0.8...1.1 x Uc) to 93.5-121Vac (110Vac nominal; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of up to 690 V. It includes 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact, with a contacts type of 1NO+1NC instantaneous aux. The rated impulse voltage (Uimp) is 6 kV, and the rated active power (kW) spans from 2.2kW at 220-230Vac to 5.5kW at 660-690Vac (all AC-3). The rated power (HP) varies from 0.33HP at 115Vac to 7.5HP at 575-600Vac, covering both single-phase and three-phase applications under UL/CSA standards. Mechanical durability is noted at 15 million operations at no load, and electrical durability at 2 million operations with load. The rated voltage (AC) for phase-to-phase connections is 690 V.

Product Details

  • Range
    TeSys
  • Rated Breaking Capacity
    250 A 440 V power circuit IEC 60947
  • Device Short Name
    LC1D
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Average Impedance
    2.5 mOhm - Ith 25 A 50 Hz power circuit
  • Signalling Circuit Frequency
    25...400 Hz
  • Poles Description
    3P
  • Mechanical Durability
    15 Mcycles
  • Heat Dissipation
    2…3 W 50/60 Hz
  • Product Or Component Type
    Contactor
  • Control Circuit Type
    AC 50/60 Hz
  • [Uc] Control Circuit Voltage
    110 V AC 50/60 Hz
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Coil Technology
    Without built-in suppressor module
  • Minimum Switching Voltage
    17 V signalling circuit
  • Power Pole Contact Composition
    3 NO
  • Product Name
    TeSys D
  • Overvoltage Category
    III
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Minimum Switching Current
    5 mA signalling circuit
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Front Cover
    With
  • Electrical Durability
    0.6 Mcycles 25 A AC-1 <= 440 V 2 Mcycles 9 A AC-3 <= 440 V
  • Hold-In Power Consumption In VA
    7.5 VA 60 Hz 0.3 68 °F (20 °C)) 7 VA 50 Hz 0.3 68 °F (20 °C))
  • [Ith] Conventional Free Air Thermal Current
    25 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
  • [Ie] Rated Operational Current
    9 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit 25 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
  • Operating Time
    12...22 ms closing 4...19 ms opening
  • Mounting Support
    Plate Rail
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Power Dissipation Per Pole
    1.56 W AC-1 0.2 W AC-3
  • Contactor Application
    Resistive load Motor control
  • Inrush Power In VA
    70 VA 60 Hz 0.75 68 °F (20 °C)) 70 VA 50 Hz 0.75 68 °F (20 °C))
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Irms Rated Making Capacity
    250 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 25 A gG <= 690 V type 1 power circuit 20 A gG <= 690 V type 2 power circuit
  • Utilisation Category
    AC-1 AC-3 AC-4
  • Connections - Terminals
    Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Power circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible
  • Tightening Torque
    Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lb
  • Control Circuit Voltage Limits
    0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • [Ui] Rated Insulation Voltage
    Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
  • Motor Power Kw
    2.2 kW 220...230 V AC 50/60 Hz AC-3) 4 kW 380...400 V AC 50/60 Hz AC-3) 4 kW 415...440 V AC 50/60 Hz AC-3) 5.5 kW 500 V AC 50/60 Hz AC-3) 5.5 kW 660...690 V AC 50/60 Hz AC-3) 2.2 kW 400 V AC 50/60 Hz AC-4)
  • Motor Power HP (UL / CSA)
    1 hp 230/240 V at AC 50/60 Hz for 1 phase 2 hp 200/208 V at AC 50/60 Hz for 3 phase 2 hp 230/240 V at AC 50/60 Hz for 3 phase 5 hp 460/480 V at AC 50/60 Hz for 3 phase 7.5 hp 575/600 V at AC 50/60 Hz for 3 phase 0.33 hp 115 V at A
  • [Icw] Rated Short-Time Withstand Current
    105 A 104 °F (40 °C) - 10 s power circuit 210 A 104 °F (40 °C) - 1 s power circuit 30 A 104 °F (40 °C) - 10 min power circuit 61 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circu
  • Product Certifications
    UL GOST GL CCC BV LROS (Lloyds register of shipping) CSA DNV RINA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D09F7 on Powermatic Associates is $111.67. Order now.
