LC1D18KUE Schneider Electric Industrial Automation Components

LC1D18KUE on Powermatic Associates
Schneider Electric

Part#:LC1D18KUE

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

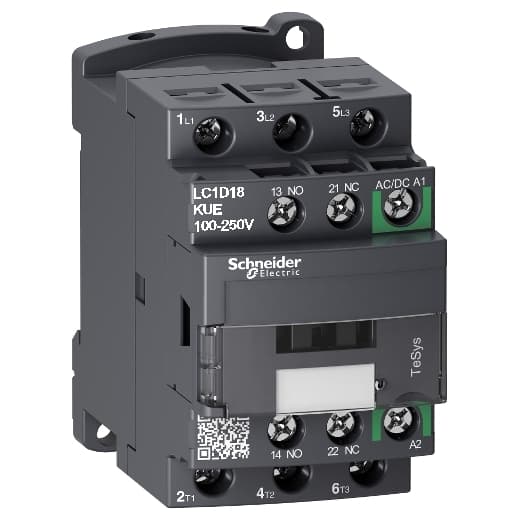

Schneider Electric LC1D18KUE is a magnetic contactor from the Deca Green sub-range, featuring a low-consumption coil (1.4VA / 1.3W) that is electronically-controlled. It offers screw connections and is designed with 3 poles (3P; 3NO), supporting a rated current of 32A (AC-1) and 18A (440Vac; AC-3). This contactor is suitable for DIN rail mounting and has an IP20 degree of protection. It operates with a control voltage range of 85-275Vdc (100-250Vdc nominal; 0.85...1.1 x Uc) for DC and 85-275Vac (100-250Vac nominal; 50Hz/60Hz; 0.85...1.1 x Uc) for AC, with a rated operating voltage (Ue) of 690 V. It includes 1 Normally Open (NO) auxiliary contact, has a rated impulse voltage (Uimp) of 6 kV, and offers rated active power ranging from 4kW at 220-230Vac to 10kW at 660-690Vac in AC-3 category. Additionally, it features 1 Normally Closed (NC) auxiliary contact with contacts type of 1NO+1NC instantaneous aux. The rated power in horsepower (HP) varies from 1HP at 115Vac in single-phase to 15HP at 575-600Vac in three-phase, under UL/CSA standards. Its mechanical durability at no load is rated at 15,000,000 operations, and it has a power consumption of 1.3 W.

Product Details

  • Product Certifications
    CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
  • Motor Power Kw
    4 kW 220...230 V AC 50 Hz AC-3) 7.5 kW 380...400 V AC 50 Hz AC-3) 9 kW 415 V AC 50 Hz AC-3) 9 kW 440 V AC 50 Hz AC-3) 10 kW 500 V AC 50 Hz AC-3) 10 kW 660...690 V AC 50 Hz AC-3)
  • Motor Power HP (UL / CSA)
    1 hp 115 V at AC 60 Hz for 1 phase 3 hp 230/240 V at AC 60 Hz for 1 phase 5 hp 200/208 V at AC 60 Hz for 3 phase 5 hp 230/240 V at AC 60 Hz for 3 phase 10 hp 460/480 V at AC 60 Hz for 3 phase 15 hp 575/600 V at AC 60 Hz for 3 phas
  • [Icw] Rated Short-Time Withstand Current
    100 A - 1 s signalling circuit 120 A - 500 ms signalling circuit 140 A - 100 ms signalling circuit 40 A 104 °F (40 °C) - 10 min power circuit 84 A 104 °F (40 °C) - 1 min power circuit 145 A 104 °F (40 °C) - 10 s power circuit
  • Tightening Torque
    Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Power circuit 15.05 lb
  • Standards
    EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
  • Control Circuit Voltage Limits
    <= 0.1 Uc -40…158 °F (-40…70 °C) drop-out AC/DC 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC/DC 1...1.1 Uc 140…158 °F (60…70 °C) operational AC/DC
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 300 A 440 V power circuit IEC 60947
  • Connections - Terminals
    Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)fl
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 50 A gG <= 690 V type 1 power circuit 35 A gG <= 690 V type 2 power circuit
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Electrical Durability
    2.2 Mcycles 15 A AC-3 <= 440 V 0.9 Mcycles 32 A AC-1 <= 440 V
  • [Uc] Control Circuit Voltage
    100...250 V AC 50/60 Hz 100...250 V DC
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 32 A 140 °F (60 °C) power circuit
  • Operating Time
    45...55 ms closing 20...90 ms opening
  • Mounting Support
    Plate Rail
  • [Ie] Rated Operational Current
    18 A 140 °F (60 °C)) <= 440 V AC-3 power circuit 32 A 140 °F (60 °C)) <= 440 V AC-1 power circuit
  • Power Dissipation Per Pole
    2.5 W AC-1 0.8 W AC-3
  • Utilisation Category
    AC-1 AC-3
  • [Ui] Rated Insulation Voltage
    Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
  • Contactor Application
    Motor control Resistive load
  • Minimum Switching Voltage
    17 V signalling circuit
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Hold-In Power Consumption In W
    1.1 W 68 °F (20 °C)
  • Hold-In Power Consumption In VA
    1.6 VA 68 °F (20 °C)) 50/60 Hz
  • Minimum Switching Current
    5 mA signalling circuit
  • Signalling Circuit Frequency
    25...400 Hz
  • Mechanical Durability
    15 Mcycles
  • Heat Dissipation
    1.1 W 50/60 Hz
  • Inrush Power In W
    18 W 68 °F (20 °C)
  • Coil Technology
    Built-in bidirectional peak limiting
  • Inrush Power In VA
    25 VA 50/60 Hz 68 °F (20 °C))
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Rated Breaking Capacity
    300 A 440 V power circuit IEC 60947
  • Front Cover
    With
  • Average Impedance
    2.5 mOhm - Ith 32 A 50 Hz power circuit
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Overvoltage Category
    III
  • Coil Type
    AC/DC electronic
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz
  • Power Pole Contact Composition
    3 NO
  • Poles Description
    3P
  • Product Or Component Type
    Contactor
  • Product Name
    TeSys D Green
  • Range
    TeSys
  • Device Short Name
    LC1D

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D18KUE on Powermatic Associates is $186.24. Order now.

LC1D18KUE Related Documents

Product Datasheet-1631039171854.pdfInstruction Sheet-1631039171859.pdf
