LC1D38U7 Schneider Electric Industrial Automation Components

LC1D38U7 on Powermatic Associates
Schneider Electric

Part#:LC1D38U7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

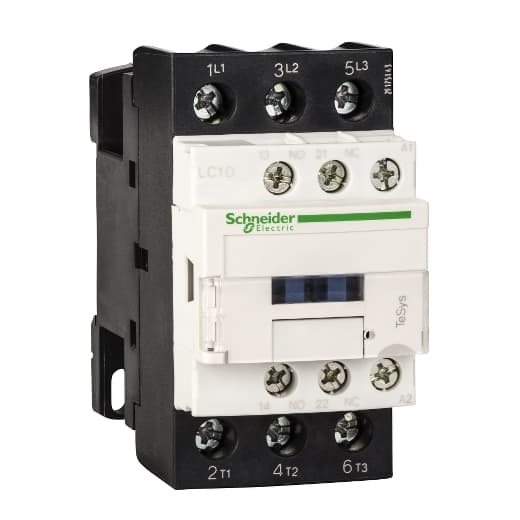

Schneider Electric LC1D38U7 is a magnetic contactor from the Deca sub-range, featuring screw connections and designed for 3-pole (3NO) configurations. It has a rated current of 50A for AC-1 applications and 38A for 440Vac in AC-3 scenarios. This contactor is suitable for DIN rail mounting and has a net width of 45 mm. It offers a degree of protection rated at IP20 and operates within control voltage ranges of 192-264Vac (240Vac nominal; 50Hz; 0.8...1.1 x Uc) and 204-264Vac (240Vac nominal; 60Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV. Its rated active power spans from 9kW at 220-230Vac to 18.5kW at 660-690Vac in AC-3 conditions. Additionally, it has 1 normally closed (NC) auxiliary contact and instantaneous auxiliary contacts type of 1NO+1NC. The rated power in horsepower (HP) varies from 2HP at 115Vac in single-phase to 25HP at 575-600Vac in three-phase applications, according to UL/CSA standards. The mechanical durability is rated at 15 million operations at no load, and its electrical durability at load is 1.4 million operations. The rated voltage for phase-to-phase applications is 690 V.

Product Details

  • Product Certifications
    DNV GOST LROS (Lloyds register of shipping) RINA CCC BV GL UL CSA
  • [Icw] Rated Short-Time Withstand Current
    60 A 104 °F (40 °C) - 10 min power circuit 430 A 104 °F (40 °C) - 1 s power circuit 150 A 104 °F (40 °C) - 1 min power circuit 310 A 104 °F (40 °C) - 10 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
  • Motor Power Kw
    18.5 kW 500 V AC 50/60 Hz AC-3) 18.5 kW 660...690 V AC 50/60 Hz AC-3) 7.5 kW 400 V AC 50/60 Hz AC-4) 18.5 kW 380...400 V AC 50/60 Hz AC-3) 9 kW 220...230 V AC 50/60 Hz AC-3) 18.5 kW 415...440 V AC 50/60 Hz AC-3)
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • [Ui] Rated Insulation Voltage
    Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL Power circuit 690 V IEC 60947-4-1
  • Motor Power HP (UL / CSA)
    10 hp 230/240 V at AC 50/60 Hz for 3 phase 10 hp 200/208 V at AC 50/60 Hz for 3 phase 5 hp 240 V at AC 50/60 Hz for 1 phase 20 hp 480 V at AC 50/60 Hz for 3 phase 25 hp 600 V at AC 50/60 Hz for 3 phase
  • Control Circuit Voltage Limits
    0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
  • Tightening Torque
    Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals flat Ø 6 mm Power circuit 22.13 lb
  • Connections - Terminals
    Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)fle
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 550 A 440 V power circuit IEC 60947
  • Utilisation Category
    AC-4 AC-1 AC-3
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 63 A gG <= 690 V type 1 power circuit 63 A gG <= 690 V type 2 power circuit
  • Electrical Durability
    1.4 Mcycles 50 A AC-1 <= 440 V 1.4 Mcycles 38 A AC-3 <= 440 V
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Operating Time
    4...19 ms opening 12...22 ms closing
  • Inrush Power In VA
    70 VA 60 Hz 0.75 68 °F (20 °C)) 70 VA 50 Hz 0.75 68 °F (20 °C))
  • Hold-In Power Consumption In VA
    7.5 VA 60 Hz 0.3 68 °F (20 °C)) 7 VA 50 Hz 0.3 68 °F (20 °C))
  • Mounting Support
    Rail Plate
  • [Ie] Rated Operational Current
    50 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit 38 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 50 A 140 °F (60 °C) power circuit
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
  • Contactor Application
    Resistive load Motor control
  • Power Dissipation Per Pole
    5 W AC-1 3 W AC-3
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Signalling Circuit Frequency
    25...400 Hz
  • Heat Dissipation
    2…3 W 50/60 Hz
  • Minimum Switching Current
    5 mA signalling circuit
  • Minimum Switching Voltage
    17 V signalling circuit
  • Coil Technology
    Without built-in suppressor module
  • Rated Breaking Capacity
    550 A 440 V power circuit IEC 60947
  • Overvoltage Category
    III
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Mechanical Durability
    15 Mcycles
  • Front Cover
    With
  • Average Impedance
    2 mOhm - Ith 50 A 50 Hz power circuit
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • [Uc] Control Circuit Voltage
    240 V AC 50/60 Hz
  • Control Circuit Type
    AC 50/60 Hz
  • Power Pole Contact Composition
    3 NO
  • Poles Description
    3P
  • Product Or Component Type
    Contactor
  • Device Short Name
    LC1D
  • Range
    TeSys
  • Product Name
    TeSys D

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D38U7 on Powermatic Associates is $234.24. Order now.
