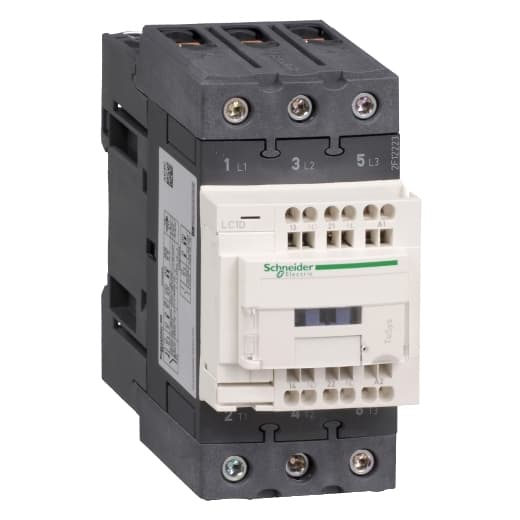

LC1D40A3F7 Schneider Electric Industrial Automation Components

LC1D40A3F7 on Powermatic Associates
Schneider Electric

Part#:LC1D40A3F7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric LC1D40A3F7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design. It offers spring connections for control and screw connections for power, with a configuration of 3 poles (3NO). The rated current is 60A for AC-1 and 40A for AC-3 at 440Vac. It is designed for DIN rail mounting and has a net width of 55 mm. The degree of protection provided is IP20. Control voltage (AC) ranges from 88-121Vac at 50Hz and 93.5-121Vac at 60Hz, with a nominal control voltage of 110Vac. The rated operating voltage (Ue) is up to 690 V. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts, with a contacts type of 1NO+1NC instantaneous aux. The rated impulse voltage (Uimp) is 6 kV. Rated active power spans from 11kW at 220-230Vac to 30kW at 660-690Vac in AC-3. Rated power in horsepower (HP) varies from 3HP at 115Vac single-phase to 30HP at 575-600Vac 3-phase, under UL/CSA standards. Mechanical durability is rated at 6 million operations, and electrical durability at 1.5 million operations with load. The rated voltage (AC) phase-to-phase is 690 V.

Product Details

  • Poles Description
    3P
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Front Cover
    With
  • Range
    TeSys
  • [Uc] Control Circuit Voltage
    110 V AC 50/60 Hz
  • Control Circuit Type
    AC 50/60 Hz
  • Average Impedance
    1.5 mOhm - Ith 60 A 50 Hz power circuit
  • Signalling Circuit Frequency
    25...400 Hz
  • Device Short Name
    LC1D
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Power Pole Contact Composition
    3 NO
  • Overvoltage Category
    III
  • Heat Dissipation
    4…5 W 50/60 Hz
  • Mechanical Durability
    6 Mcycles
  • Coil Technology
    Without built-in suppressor module
  • Minimum Switching Current
    5 mA signalling circuit
  • Product Name
    TeSys D
  • Rated Breaking Capacity
    800 A 440 V power circuit IEC 60947
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Product Or Component Type
    Contactor
  • Minimum Switching Voltage
    17 V signalling circuit
  • Mounting Support
    Rail Plate
  • Power Dissipation Per Pole
    2.4 W AC-3 5.4 W AC-1
  • Contactor Application
    Resistive load Motor control
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 60 A 140 °F (60 °C) power circuit
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
  • [Ie] Rated Operational Current
    60 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit 40 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit
  • Electrical Durability
    1.4 Mcycles 60 A AC-1 <= 440 V 1.5 Mcycles 40 A AC-3 <= 440 V
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Operating Time
    4...19 ms opening 12...26 ms closing
  • Tightening Torque
    Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagonal 0.16 in (4 mm) Power circuit 44.25 lbf.in (5 N.m) EverLink BTR screw connectors 0.00…0.04 in² (0.75…25 mm²) hexagonal 0.16 in (4 mm)
  • Hold-In Power Consumption In VA
    13 VA 60 Hz 0.3 68 °F (20 °C)) 15 VA 50 Hz 0.3 68 °F (20 °C))
  • Inrush Power In VA
    140 VA 60 Hz 0.75 68 °F (20 °C)) 160 VA 50 Hz 0.75 68 °F (20 °C))
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Utilisation Category
    AC-3 AC-1 AC-4
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 80 A gG <= 690 V type 1 power circuit 80 A gG <= 690 V type 2 power circuit
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 800 A 440 V power circuit IEC 60947
  • Connections - Terminals
    Control circuit spring terminals 1 0.00…0.00 in² (0.75…2.5 mm²)flexible without cable end Control circuit spring terminals 2 0.00…0.00 in² (0.75…2.5 mm²)flexible without cable end Power circuit spring clamp terminal 1 0.00…0.05 in² (1…35 mm²)fle
  • Product Certifications
    GOST CSA UL CCC
  • Control Circuit Voltage Limits
    0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
  • Motor Power Kw
    18.5 kW 380...400 V AC 50/60 Hz AC-3) 11 kW 220...230 V AC 50/60 Hz AC-3) 22 kW 415...440 V AC 50/60 Hz AC-3) 22 kW 500 V AC 50/60 Hz AC-3) 30 kW 660...690 V AC 50/60 Hz AC-3) 9 kW 400 V AC 50/60 Hz AC-4)
  • Motor Power HP (UL / CSA)
    5 hp 230/240 V at AC 50/60 Hz for 1 phase 10 hp 230/240 V at AC 50/60 Hz for 3 phase 30 hp 575/600 V at AC 50/60 Hz for 3 phase 10 hp 200/208 V at AC 50/60 Hz for 3 phase 3 hp 115 V at AC 50/60 Hz for 1 phase 30 hp 460/480 V at AC
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • [Ui] Rated Insulation Voltage
    Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL Power circuit 690 V IEC 60947-4-1
  • [Icw] Rated Short-Time Withstand Current
    320 A 104 °F (40 °C) - 10 s power circuit 720 A 104 °F (40 °C) - 1 s power circuit 72 A 104 °F (40 °C) - 10 min power circuit 165 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D40A3F7 on Powermatic Associates is $272.09. Order now.

LC1D40A3F7 Related Documents

Product Datasheet-1631038640268.pdfInstruction Sheet-1631038640271.pdf
