LC1D40A6EHE Schneider Electric Industrial Automation Components


Part#:LC1D40A6EHE
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

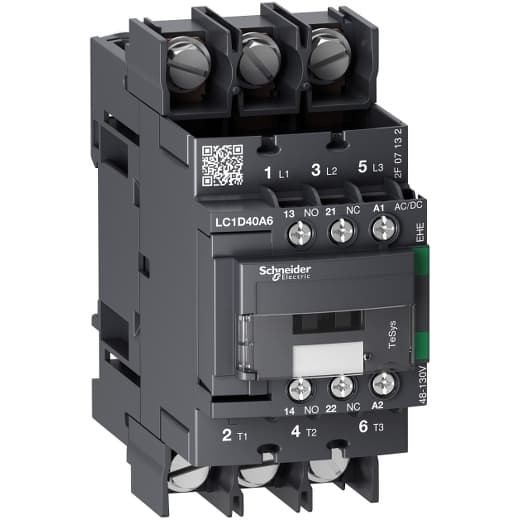

Schneider Electric - LC1D40A6EHE
Product Details
- Product Name TeSys D Green
- Front Cover With
- Coil Technology Built-in bidirectional peak limiting
- Minimum Switching Voltage 17 V signalling circuit
- Coil Type AC/DC electronic
- Maximum Operating Rate 3600 cyc/h 140 °F (60 °C)
- Minimum Switching Current 5 mA signalling circuit
- Signalling Circuit Frequency 25...400 Hz
- Range TeSys
- Rated Breaking Capacity 800 A 440 V power circuit IEC 60947
- [Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947
- Heat Dissipation 0.9 W 50/60 Hz
- Poles Description 3P
- [Ue] Rated Operational Voltage Power circuit <= 690 V AC 25...400 Hz
- Auxiliary Contact Composition 1 NO + 1 NC
- Device Short Name LC1D
- Overvoltage Category III
- Mechanical Durability 6 Mcycles
- Product Or Component Type Contactor
- Hold-In Power Consumption In VA 1.4 VA 68 °F (20 °C)) 50/60 Hz
- Power Pole Contact Composition 3 NO
- Average Impedance 1.5 mOhm - Ith 60 A 50 Hz power circuit
- Inrush Power In W 19 W 68 °F (20 °C)
- Inrush Power In VA 23 VA 50/60 Hz 68 °F (20 °C))
- Insulation Resistance > 10 MOhm signalling circuit
- Hold-In Power Consumption In W 0.9 W 68 °F (20 °C)
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- [Ie] Rated Operational Current 60 A 140 °F (60 °C)) <= 440 V AC-1 power circuit 40 A 140 °F (60 °C)) <= 440 V AC-3 power circuit
- Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
- Contactor Application Motor control Resistive load
- Utilisation Category AC-3 AC-1
- [Ith] Conventional Free Air Thermal Current 60 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
- [Uc] Control Circuit Voltage 48...130 V AC 50/60 Hz 48...130 V DC
- Mounting Support Plate Rail
- Electrical Durability 2 Mcycles 35 A AC-3 <= 440 V 0.7 Mcycles 60 A AC-1 <= 440 V
- [Ui] Rated Insulation Voltage Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
- Power Dissipation Per Pole 5.4 W AC-1 2.4 W AC-3
- Non-Overlap Time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
- Operating Time 55...65 ms closing 20...80 ms opening
- Connections - Terminals Power circuit lugs-ring terminals 0.65 in (16.5 mm)) Control circuit lugs-ring terminals 0.31 in (8 mm))
- Control Circuit Voltage Limits <= 0.1 Uc -40…158 °F (-40…70 °C) drop-out AC/DC 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC/DC 1...1.1 Uc 140…158 °F (60…70 °C) operational AC/DC
- Tightening Torque Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals flat Ø 6 mm M3.5 Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals Philips No 2 M3.5 Power circuit 53.10 lbf.in (6 N.m) lugs-ring terminals hexagonal 0.39 in (10 mm) M6
- Irms Rated Making Capacity 800 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
- Associated Fuse Rating 80 A gG <= 690 V type 1 power circuit 80 A gG <= 690 V type 2 power circuit 10 A gG signalling circuit IEC 60947-5-1
- Standards EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
- [Icw] Rated Short-Time Withstand Current 72 A 104 °F (40 °C) - 10 min power circuit 165 A 104 °F (40 °C) - 1 min power circuit 320 A 104 °F (40 °C) - 10 s power circuit 720 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
- Motor Power Kw 11 kW 220...230 V AC 50 Hz AC-3) 18.5 kW 380...400 V AC 50 Hz AC-3) 22 kW 415 V AC 50 Hz AC-3) 22 kW 440 V AC 50 Hz AC-3) 22 kW 500 V AC 50 Hz AC-3) 30 kW 660...690 V AC 50 Hz AC-3)
- Motor Power HP (UL / CSA) 3 hp 115 V at AC 60 Hz for 1 phase 5 hp 230/240 V at AC 60 Hz for 1 phase 10 hp 200/208 V at AC 60 Hz for 3 phase 10 hp 230/240 V at AC 60 Hz for 3 phase 30 hp 460/480 V at AC 60 Hz for 3 phase 30 hp 575/600 V at AC 60 Hz for 3 ph
- Product Certifications CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
