LC1D65A6BBE Schneider Electric Industrial Automation Components

LC1D65A6BBE on Powermatic Associates
Schneider Electric

Part#:LC1D65A6BBE

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

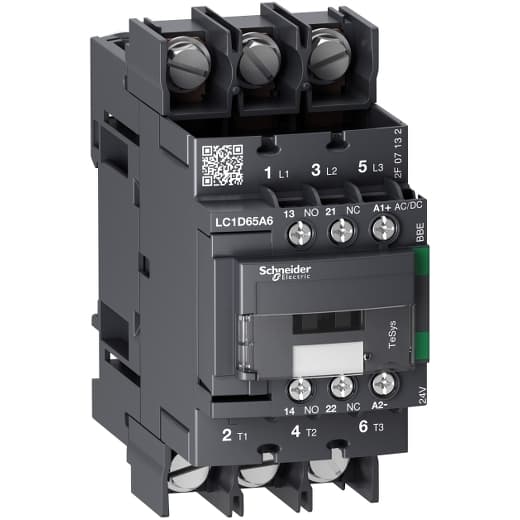

Schneider Electric LC1D65A6BBE is a magnetic contactor from the Deca Green sub-range, featuring an EverLink(TM) terminal design with a low-consumption coil (0.5W) that includes coil current permanent monitoring and control with an electronically-controlled coil. It offers ring-lugs/bar connections and is equipped with 3 poles (3P; 3NO). The contactor has a rated current of 80A (AC-1) and 65A (440Vac; AC-3), and it is designed for DIN rail mounting with an IP20 degree of protection. The control voltage (DC) ranges from 19.2-28.8Vdc (24Vdc nom.; 0.8...1.2 x Uc). Its rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. The rated active power (kW) spans from 18.5kW at 220-230Vac to 37kW at 660-690Vac in AC-3 category. It supports rated power (HP) for various voltages and phases, including 5HP at 115Vac single-phase and up to 50HP at 575-600Vac 3-phase, under UL/CSA standards. The mechanical durability of the contactor is rated at 6 million operations at no load, and its power consumption is notably low at 0.5 W.

Product Details

  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Inrush Power In W
    11 W 68 °F (20 °C)
  • Power Pole Contact Composition
    3 NO
  • Heat Dissipation
    0.5 W
  • Product Or Component Type
    Contactor
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Hold-In Power Consumption In W
    0.5 W 68 °F (20 °C)
  • Front Cover
    With
  • Range
    TeSys
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Product Name
    TeSys D Green
  • Device Short Name
    LC1D
  • Overvoltage Category
    III
  • Coil Technology
    Built-in bidirectional peak limiting
  • Minimum Switching Current
    5 mA signalling circuit
  • Coil Type
    DC low consumption
  • Average Impedance
    1.5 mOhm - Ith 80 A 50 Hz power circuit
  • Mechanical Durability
    6 Mcycles
  • Signalling Circuit Frequency
    25...400 Hz
  • [Uc] Control Circuit Voltage
    24 V DC
  • Minimum Switching Voltage
    17 V signalling circuit
  • Poles Description
    3P
  • Rated Breaking Capacity
    1000 A 440 V power circuit IEC 60947
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Mounting Support
    Rail Plate
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • [Ie] Rated Operational Current
    80 A 140 °F (60 °C)) <= 440 V AC-1 power circuit 65 A 140 °F (60 °C)) <= 440 V AC-3 power circuit
  • Connections - Terminals
    Power circuit lugs-ring terminals 0.65 in (16.5 mm)) Control circuit lugs-ring terminals 0.31 in (8 mm))
  • Contactor Application
    Motor control Resistive load
  • Operating Time
    55...65 ms closing 20...80 ms opening
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Power Dissipation Per Pole
    9.6 W AC-1 6.3 W AC-3
  • Electrical Durability
    1.8 Mcycles 57 A AC-3 <= 440 V 0.5 Mcycles 80 A AC-1 <= 440 V
  • Utilisation Category
    AC-3 AC-1
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • [Ith] Conventional Free Air Thermal Current
    80 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
  • [Ui] Rated Insulation Voltage
    Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
  • Associated Fuse Rating
    125 A gG <= 690 V type 1 power circuit 125 A gG <= 690 V type 2 power circuit 10 A gG signalling circuit IEC 60947-5-1
  • Tightening Torque
    Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals flat Ø 6 mm M3.5 Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals Philips No 2 M3.5 Power circuit 53.10 lbf.in (6 N.m) lugs-ring terminals hexagonal 0.39 in (10 mm) M6
  • Control Circuit Voltage Limits
    <= 0.1 Uc -40…158 °F (-40…70 °C) drop-out DC 0.8...1.2 Uc -40…140 °F (-40…60 °C) operational DC 1...1.2 Uc 140…158 °F (60…70 °C) operational DC
  • Irms Rated Making Capacity
    1000 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
  • Standards
    EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
  • Motor Power HP (UL / CSA)
    5 hp 115 V at AC 60 Hz for 1 phase 10 hp 230/240 V at AC 60 Hz for 1 phase 20 hp 200/208 V at AC 60 Hz for 3 phase 20 hp 230/240 V at AC 60 Hz for 3 phase 40 hp 460/480 V at AC 60 Hz for 3 phase 50 hp 575/600 V at AC 60 Hz for 3 p
  • Motor Power Kw
    18.5 kW 220...230 V AC 50 Hz AC-3) 30 kW 380...400 V AC 50 Hz AC-3) 37 kW 415 V AC 50 Hz AC-3) 37 kW 440 V AC 50 Hz AC-3) 37 kW 500 V AC 50 Hz AC-3) 37 kW 660...690 V AC 50 Hz AC-3)
  • [Icw] Rated Short-Time Withstand Current
    110 A 104 °F (40 °C) - 10 min power circuit 260 A 104 °F (40 °C) - 1 min power circuit 520 A 104 °F (40 °C) - 10 s power circuit 900 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling cir
  • Product Certifications
    CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
