LC1D65ABBE Schneider Electric Industrial Automation Components

LC1D65ABBE on Powermatic Associates
Schneider Electric

Part#:LC1D65ABBE

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

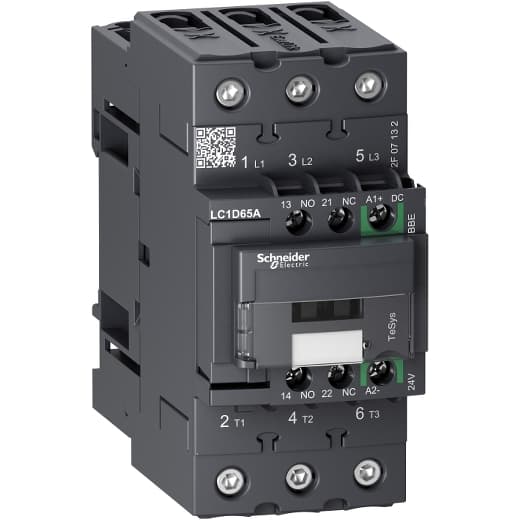

Schneider Electric LC1D65ABBE is a contactor from the Deca Green sub-range, featuring a magnetic operation with an EverLink(TM) terminal design and a low-consumption coil that consumes 0.5W. It has screw connections for installation and is equipped with three poles (3P; 3NO) capable of handling a rated current of 80A in AC-1 and 65A at 440Vac in AC-3. This contactor is designed for DIN rail mounting, has a net width of 55 mm, and offers a degree of protection rated at IP20. The control voltage (DC) ranges from 19.2-28.8Vdc, with a nominal 24Vdc. It operates at a rated operating voltage (Ue) of up to 690 V and includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV, and it can control rated active power up to 37kW across various voltages in AC-3. The rated power in horsepower (HP) varies from 5HP at 115Vac to 50HP at 575-600Vac, under UL/CSA standards for both single-phase and three-phase systems. Its mechanical durability is rated at 6 million operations at no load, and its electrical durability with load is 1.4 million operations. The rated voltage (AC) phase-to-phase is 690 V, with a power consumption of 0.5 W.

Product Details

  • Product Certifications
    CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
  • [Icw] Rated Short-Time Withstand Current
    110 A 104 °F (40 °C) - 10 min power circuit 260 A 104 °F (40 °C) - 1 min power circuit 520 A 104 °F (40 °C) - 10 s power circuit 900 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling cir
  • Motor Power HP (UL / CSA)
    5 hp 115 V at AC 60 Hz for 1 phase 10 hp 230/240 V at AC 60 Hz for 1 phase 20 hp 200/208 V at AC 60 Hz for 3 phase 20 hp 230/240 V at AC 60 Hz for 3 phase 40 hp 460/480 V at AC 60 Hz for 3 phase 50 hp 575/600 V at AC 60 Hz for 3 p
  • Motor Power Kw
    18.5 kW 220...230 V AC 50 Hz AC-3) 30 kW 380...400 V AC 50 Hz AC-3) 37 kW 415 V AC 50 Hz AC-3) 37 kW 440 V AC 50 Hz AC-3) 37 kW 500 V AC 50 Hz AC-3) 37 kW 660...690 V AC 50 Hz AC-3)
  • Standards
    EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
  • Connections - Terminals
    Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)fl
  • Operating Time
    55...65 ms closing 20...120 ms opening >= 17221) 20...80 ms opening >= 18011)
  • Tightening Torque
    Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagon
  • Control Circuit Voltage Limits
    <= 0.1 Uc -40…158 °F (-40…70 °C) drop-out DC 0.8...1.2 Uc -40…140 °F (-40…60 °C) operational DC 1...1.2 Uc 140…158 °F (60…70 °C) operational DC
  • Associated Fuse Rating
    125 A gG <= 690 V type 1 power circuit 125 A gG <= 690 V type 2 power circuit 10 A gG signalling circuit IEC 60947-5-1
  • Irms Rated Making Capacity
    1000 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
  • Utilisation Category
    AC-3 AC-1
  • Contactor Application
    Motor control Resistive load
  • [Ith] Conventional Free Air Thermal Current
    80 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
  • Mounting Support
    Rail Plate
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Electrical Durability
    1.8 Mcycles 57 A AC-3 <= 440 V 0.5 Mcycles 80 A AC-1 <= 440 V
  • [Ie] Rated Operational Current
    80 A 140 °F (60 °C)) <= 440 V AC-1 power circuit 65 A 140 °F (60 °C)) <= 440 V AC-3 power circuit
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Power Dissipation Per Pole
    9.6 W AC-1 6.3 W AC-3
  • [Ui] Rated Insulation Voltage
    Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Signalling Circuit Frequency
    25...400 Hz
  • Minimum Switching Current
    5 mA signalling circuit
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Minimum Switching Voltage
    17 V signalling circuit
  • Hold-In Power Consumption In W
    0.5 W 68 °F (20 °C)
  • Inrush Power In W
    11 W 68 °F (20 °C)
  • Heat Dissipation
    0.5 W
  • Coil Technology
    Built-in bidirectional peak limiting
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Mechanical Durability
    6 Mcycles
  • Front Cover
    With
  • Average Impedance
    1.5 mOhm - Ith 80 A 50 Hz power circuit
  • Rated Breaking Capacity
    1000 A 440 V power circuit IEC 60947
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz
  • [Uc] Control Circuit Voltage
    24 V DC
  • Overvoltage Category
    III
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Coil Type
    DC low consumption
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Power Pole Contact Composition
    3 NO
  • Device Short Name
    LC1D
  • Poles Description
    3P
  • Product Or Component Type
    Contactor
  • Product Name
    TeSys D Green
  • Range
    TeSys

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D65ABBE on Powermatic Associates is $426.06. Order now.

LC1D65ABBE Related Documents

Instruction Sheet-1631039113548.pdfProduct Datasheet-1631039113546.pdf
