Part#:LC1D80BW

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

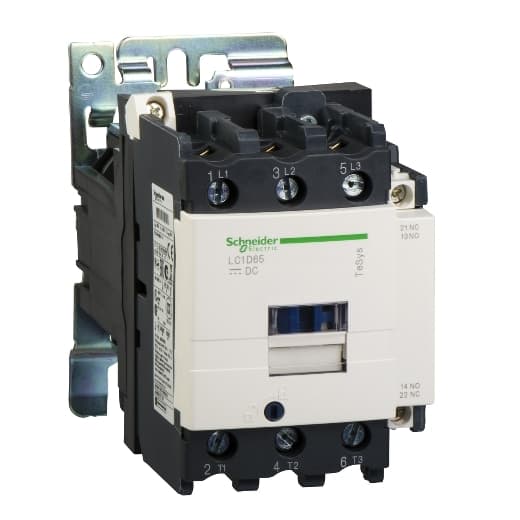

Schneider Electric LC1D80BW is a magnetic contactor from the Deca sub-range, designed with a wide-range coil (0.75-1.2 x Uc) for flexibility in control voltage, which ranges from 18-28.8Vdc (24Vdc nom.; 0.75...1.2 x Uc). It features screw connections for secure installation and is equipped with three poles (3P; 3NO), supporting a rated current of 125A (AC-1) and 80A (440Vac; AC-3). This contactor is suitable for DIN rail mounting, has a net width of 85 mm, and offers a degree of protection rated at IP20. The rated operating voltage (Ue) is up to 1000 V, with a rated impulse voltage (Uimp) of 8 kV. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both of the instantaneous type (1NO+1NC). The rated active power spans from 22kW at 220-230Vac to 55kW at 500Vac in AC-3 category, and the rated power in horsepower ranges from 7.5HP at 115Vac to 60HP at 575-600Vac, covering various single-phase and three-phase applications. The mechanical durability of the LC1D80BW is rated at 4,000,000 operations, with electrical durability (with load) at 1,500,000 operations. The rated voltage for phase-to-phase applications is 1000 V.

Product Details

  • Product Certifications
    LROS (Lloyds register of shipping) CSA RINA CCC GL GOST BV UL DNV
  • Motor Power Kw
    22 kW 220...230 V AC 50/60 Hz AC-3) 37 kW 380...400 V AC 50/60 Hz AC-3) 45 kW 415...440 V AC 50/60 Hz AC-3) 55 kW 500 V AC 50/60 Hz AC-3) 45 kW 660...690 V AC 50/60 Hz AC-3) 45 kW 1000 V AC 50/60 Hz AC-3) 15 kW 400 V AC 50/60
  • Motor Power HP (UL / CSA)
    20 hp 200/208 V at AC 50/60 Hz for 3 phase 7.5 hp 115 V at AC 50/60 Hz for 1 phase 15 hp 230/240 V at AC 50/60 Hz for 1 phase 25 hp 230/240 V at AC 50/60 Hz for 3 phase 60 hp 460/480 V at AC 50/60 Hz for 3 phase 60 hp 575/600 V at
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • [Ui] Rated Insulation Voltage
    Power circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
  • [Icw] Rated Short-Time Withstand Current
    640 A 104 °F (40 °C) - 10 s power circuit 990 A 104 °F (40 °C) - 1 s power circuit 135 A 104 °F (40 °C) - 10 min power circuit 320 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling cir
  • Tightening Torque
    Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.21 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm Power circuit 106.21 lbf.in
  • Connections - Terminals
    Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flex
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 200 A gG <= 690 V type 1 power circuit 160 A gG <= 690 V type 2 power circuit
  • Control Circuit Voltage Limits
    0.75...1.2 Uc -40…131 °F (-40…55 °C) operational DC 0.1...0.3 Uc -40…158 °F (-40…70 °C) drop-out DC 1...1.2 Uc 131…158 °F (55…70 °C) operational DC
  • Utilisation Category
    AC-3 AC-4 AC-1
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Operating Time
    95...130 ms closing 20...35 ms opening
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Mounting Support
    Rail Plate
  • [Ue] Rated Operational Voltage
    Power circuit <= 300 V DC 25...400 Hz Power circuit <= 690 V AC
  • [Ie] Rated Operational Current
    125 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit 80 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit
  • Electrical Durability
    0.8 Mcycles 125 A AC-1 <= 440 V 1.5 Mcycles 80 A AC-3 <= 440 V
  • Contactor Application
    Motor control Resistive load
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 125 A 140 °F (60 °C) power circuit
  • Power Dissipation Per Pole
    5.1 W AC-3 12.5 W AC-1
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 1100 A 440 V power circuit IEC 60947
  • Signalling Circuit Frequency
    25...400 Hz
  • Minimum Switching Current
    5 mA signalling circuit
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Hold-In Power Consumption In W
    22 W 68 °F (20 °C)
  • Time Constant
    75 ms
  • Coil Technology
    Without built-in suppressor module
  • Minimum Switching Voltage
    17 V signalling circuit
  • Inrush Power In W
    22 W 68 °F (20 °C))
  • Mechanical Durability
    10 Mcycles
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Front Cover
    With
  • Average Impedance
    0.8 mOhm - Ith 125 A 50 Hz power circuit
  • Rated Breaking Capacity
    1100 A 440 V power circuit IEC 60947
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947
  • Overvoltage Category
    III
  • [Uc] Control Circuit Voltage
    24 V DC
  • Control Circuit Type
    DC wide range
  • Product Name
    TeSys D
  • Device Short Name
    LC1D
  • Poles Description
    3P
  • Power Pole Contact Composition
    3 NO
  • Range
    TeSys
  • Product Or Component Type
    Contactor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D80BW on Powermatic Associates is $564.93. Order now.

LC1D80BW Related Documents

Product Datasheet-1631038092139.pdfInstruction Sheet-1631038092135.pdf
