LC1D95BD Schneider Electric Industrial Automation Components

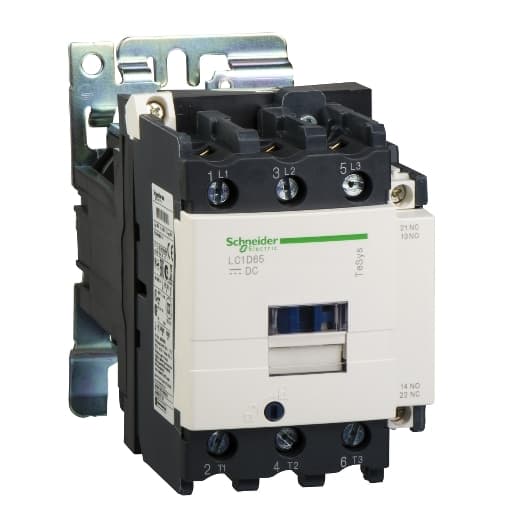

LC1D95BD on Powermatic Associates
Schneider Electric

Part#:LC1D95BD

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric LC1D95BD is a magnetic contactor from the Deca sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 125A (AC-1) and 95A (440Vac; AC-3), with a mounting mode suitable for DIN rail installation. The net width of the contactor is 85 mm, and it offers a degree of protection rated at IP20. The control voltage (DC) ranges from 20.4-26.4Vdc (24Vdc nom.; 0.85...1.1 x Uc), and the rated operating voltage (Ue) is up to 1000 V. This contactor includes 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 8 kV. It supports rated active power of 25kW (220-230Vac; AC-3) up to 55kW (500Vac; AC-3) depending on the operating voltage, with a rated power in horsepower ranging from 7.5HP at 115Vac to 60HP at 575-600Vac. The mechanical durability of the LC1D95BD is 4,000,000 operations, and its electrical durability with load is 1,200,000 operations. The rated voltage (AC) for phase-to-phase connections is 1000 V.

Product Details

  • Product Name
    TeSys D
  • Control Circuit Type
    DC standard
  • Poles Description
    3P
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947
  • Front Cover
    With
  • Mechanical Durability
    10 Mcycles
  • Inrush Power In W
    22 W 68 °F (20 °C))
  • Product Or Component Type
    Contactor
  • Device Short Name
    LC1D
  • Average Impedance
    0.8 mOhm - Ith 125 A 50 Hz power circuit
  • [Uc] Control Circuit Voltage
    24 V DC
  • Minimum Switching Voltage
    17 V signalling circuit
  • [Ue] Rated Operational Voltage
    Power circuit 1000 V AC 25...400 Hz
  • Range
    TeSys
  • Overvoltage Category
    III
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Rated Breaking Capacity
    1100 A 440 V power circuit IEC 60947
  • Signalling Circuit Frequency
    25...400 Hz
  • Power Pole Contact Composition
    3 NO
  • Time Constant
    75 ms
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Coil Technology
    Without built-in suppressor module
  • Hold-In Power Consumption In W
    22 W 68 °F (20 °C)
  • Minimum Switching Current
    5 mA signalling circuit
  • Mounting Support
    Rail Plate
  • Contactor Application
    Resistive load Motor control
  • [Ie] Rated Operational Current
    95 A 140 °F (60 °C)) <= 440 V AC-3 power circuit 125 A 140 °F (60 °C)) <= 690 V AC-1 power circuit
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 125 A 140 °F (60 °C) power circuit
  • Power Dissipation Per Pole
    12.5 W AC-1 7.2 W AC-3
  • Operating Time
    95...130 ms closing 20...35 ms opening
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • [Ui] Rated Insulation Voltage
    Power circuit 1000 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
  • Electrical Durability
    1.2 Mcycles 95 A AC-3 1.3 Mcycles 125 A AC-1
  • Safety Reliability Level
    B10d = 1.3 Mcycles contactor with nominal load EN/ISO 13849-1 B10d = 20 Mcycles contactor with mechanical load EN/ISO 13849-1
  • Irms Rated Making Capacity
    1100 A 440 V AC power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
  • Utilisation Category
    AC-3 AC-4 AC-1
  • Control Circuit Voltage Limits
    0.1...0.3 Uc -40…158 °F (-40…70 °C) drop-out DC 0.85...1.1 Uc -40…131 °F (-40…55 °C) operational DC 1...1.1 Uc 131…158 °F (55…70 °C) operational DC
  • Connections - Terminals
    Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flex
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 200 A gG <= 690 V type 1 power circuit 160 A gG <= 690 V type 2 power circuit
  • Tightening Torque
    Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.21 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm Power circuit 106.21 lbf.in
  • Standards
    EN/IEC 60947-1 EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.4
  • Motor Power Kw
    25 kW 220...230 V AC 50 Hz AC-3) 45 kW 380...400 V AC 50 Hz AC-3) 45 kW 415...440 V AC 50 Hz AC-3) 55 kW 500 V AC 50 Hz AC-3) 45 kW 660...690 V AC 50 Hz AC-3) 45 kW 1000 V AC 50 Hz AC-3)
  • [Icw] Rated Short-Time Withstand Current
    1100 A 104 °F (40 °C) - 1 s power circuit 800 A 104 °F (40 °C) - 10 s power circuit 400 A 104 °F (40 °C) - 1 min power circuit 135 A 104 °F (40 °C) - 10 min power circuit 140 A - 100 ms signalling circuit 120 A - 500 ms signalling
  • Motor Power HP (UL / CSA)
    7.5 hp 115 V at AC 60 Hz for 1 phase 15 hp 230/240 V at AC 60 Hz for 1 phase 25 hp 200/208 V at AC 60 Hz for 3 phase 30 hp 230/240 V at AC 60 Hz for 3 phase 60 hp 460/480 V at AC 60 Hz for 3 phase 60 hp 575/600 V at AC 60 Hz for 3
  • Product Certifications
    IECEE CB Scheme CCC EAC LROS (Lloyds register of shipping) RINA BV DNV-GL

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D95BD on Powermatic Associates is $673.30. Order now.

LC1D95BD Related Documents
