Part#:LHL36250

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

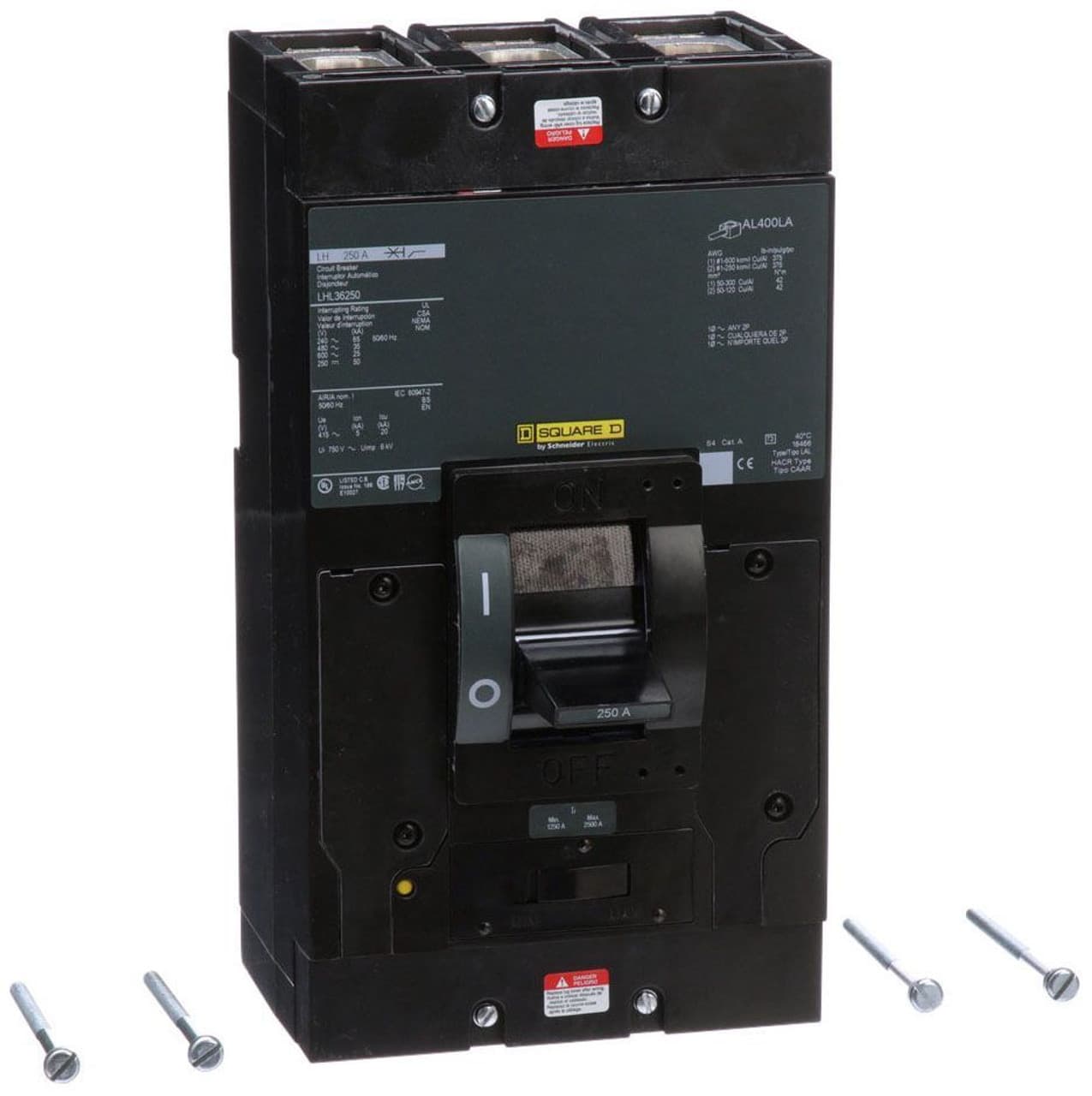

Square D by Schneider Electric LHL36250 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT LHL sub-range, featuring a PowerPact LH-Frame with high-interrupting capacity. It is designed with 3 poles (3P), rated at 250A with a rated insulation voltage (Ui) of 750V, and operates at a rated voltage (AC) of 600Vac and 600Y/347Vac. This unit supports a rated voltage (DC) of 250Vdc, with a net height of 280 mm, width of 153 mm, and depth of 150 mm. It offers thermal and magnetic protection, with thermal protection for overload and magnetic protection for short-circuit scenarios. The connection type includes lugs on both load and line sides, and it is designed for individual unit mount on plate. The degree of protection is IP40, with a toggle (manual) operating mode. Protection settings include over-current fixed at 250A and short-circuit pickup current adjustable between 1250A and 2500A. The rated operating voltage (Ue) is 600 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 250 AT, and the frame current rating is 600 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 25kA at 600Vac and 600Y/347Vac, 50kA at 250Vdc, and 20kA at 500Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (adjustable) with no display, and it falls under utilisation category A.

Product Details

  • Width
    6 in (152.40 mm)
  • Number Of Poles
    3P
  • Depth
    5.84 in (148.34 mm)
  • Line Rated Current
    250 A
  • Magnetic Hold Current
    1250 A
  • Product Or Component Type
    Circuit breaker
  • Height
    11 in (279.40 mm)
  • Trip Unit Technology
    Thermal-magnetic
  • Magnetic Tripping Current
    2500 A
  • Mounting Mode
    Unit mount
  • Breaking Capacity Code
    H
  • Terminal Identifier
    AL400LA
  • Shipping Weight:
    15.20 lbs.
  • TS PIK:
    21263438
  • UPC:
    78590133936
  • Shipping Length:
    15.00 In.
  • Shipping Height:
    8.00 In.
  • Shipping Width:
    7.00 In.
  • Electrical Connection
    Lugs load Lugs line
  • Tightening Torque
    115.06 lbf.in (13 N.m) 0.07…0.47 in² (42…304 mm²) (AWG 1...600 kcmil) 115.06 lbf.in (13 N.m) 0.07…0.20 in² (42…127 mm²) (AWG 1...250 kcmil)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LHL36250 on Powermatic Associates is $7,598.00. Order now.
