Part#:LV426802

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

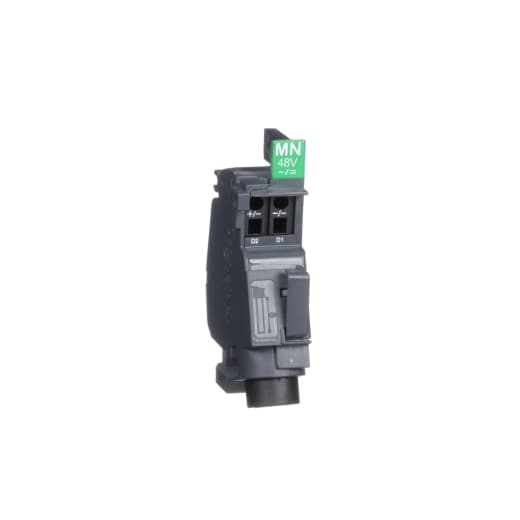

Schneider Electric LV426802 is a coil designed for tripping purposes, featuring undervoltage release functionality. It operates by instantaneously opening the circuit breaker when the supply voltage of the undervoltage trip drops to a value between 35% and 70% of its rated control voltage. The coil allows for closing when the supply voltage reaches 85% of the rated control voltage. It is compatible with both DC and AC control voltages, specifically 48Vdc and 48Vac, respectively, adhering to the same operational thresholds for triggering and resetting.

Product Details

  • Product Or Component Type
    Voltage release
  • Auxiliary Connection Terminal
    spring
  • Device Application
    Control
  • Response Time
    < 50 ms
  • Mounting Mode
    Clip-on
  • Voltage Release Type
    Undervoltage release
  • Device Short Name
    MN
  • Threshold Tripping Voltage
    0.35...0.7 x Un opening 0.85 x Un closing
  • Range Compatibility
    PowerPact B ComPact NSXm
  • [Uc] Control Circuit Voltage
    48 V AC 50/60 Hz 48 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
