Part#:LV426863

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

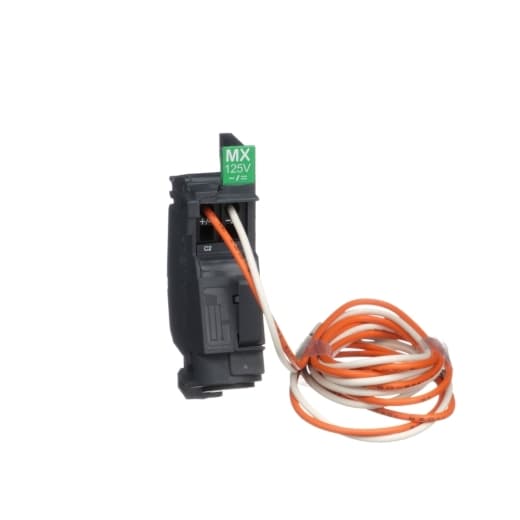

Schneider Electric LV426863 is a coil designed for tripping applications, featuring a shunt opening release function. This tripping coil, identified as ST MX, comes with a pre-wired cable that terminates with bare end flying leads, facilitating easy installation. It operates on a control voltage range of 110Vdc to 130Vdc for DC applications and 110Vac to 130Vac for AC applications, accommodating a variety of electrical setups.

Product Details

  • Product Or Component Type
    Voltage release
  • Voltage Release Type
    Shunt trip release
  • Cable Length
    3.28 ft (1 m)
  • Wire Stripping Length
    0.31 in (8 mm)
  • Device Short Name
    MX
  • Response Time
    < 50 ms
  • Impulse Duration
    >= 20 ms
  • Threshold Tripping Voltage
    0.7 Un opening
  • Auxiliary Connection Terminal
    pre-wired 0.00…0.00 in² (0…0.8 mm²) AWG 18)stranded copper
  • Mounting Mode
    Clip-on
  • Device Application
    Control
  • [Uc] Control Circuit Voltage
    110...130 V AC 50/60 Hz 125 V DC
  • Control Signal Type
    Maintained Impulse
  • Range Compatibility
    PowerPact B ComPact NSXm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
