M9F14332 Schneider Electric Industrial Automation Components
Part#:M9F14332
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

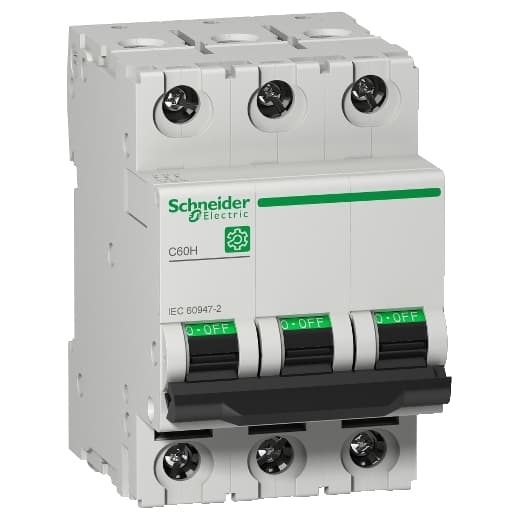

Schneider Electric M9F14332 is a Miniature Circuit Breaker (MCB) within the C60H sub-range, designed with 3 poles and a rated current of 32A. It features a rated insulation voltage (Ui) of 500V, a rated operating voltage (Ue) of 440V, and a rated voltage for DC applications at 125Vdc. The device is equipped to handle a rated impulse voltage (Uimp) of 6kV and offers protection across all 3 poles. It operates with a tripping curve C, ensuring precise protection and control for electrical circuits.
Product Details
- Product Name Multi 9 C60
- Trip Unit Technology Thermal-magnetic
- Local Signalling ON/OFF indication
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Device Short Name C60H
- Contact Position Indicator Yes
- Color Gray
- Suitability For Isolation Yes EN/IEC 60947-2
- Provision For Padlocking Padlockable
- Height 3.19 in (81 mm)
- Line Rated Current 32 A 122 °F (50 °C) EN/IEC 60947-2
- Depth 2.83 in (72 mm)
- Electrical Durability 10000 cycles
- Range Multi 9
- Curve Code C
- Net Weight 0.79 lb(US) (0.36 kg)
- Poles Description 3P
- Control Type Toggle
- Width 2.13 in (54 mm)
- Network Frequency 50/60 Hz
- Mounting Mode Clip-on
- Tightening Torque 30.98 lbf.in (3.5 N.m) top or bottom
- Standards EN/IEC 60947-2
- [Ui] Rated Insulation Voltage 500 V AC 50/60 Hz EN/IEC 60947-2
- 9 Mm Pitches 6
- Device Application Distribution
- Product Or Component Type Miniature circuit-breaker
- Mounting Support DIN rail
- Mechanical Durability 20000 cycles
- Number Of Protected Poles 3
- Utilisation Category Category A EN/IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Earth-Leakage Protection Separate block
- Network Type DC AC
- Product Certifications EAC CCC
- Magnetic Tripping Limit 8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.05 in² (1.5…35 mm²) - rigid Tunnel type terminal top or bottom) 0.00…0.05 in² (1.5…35 mm²) - flexible Tunnel type terminal top or bottom) 0.00…0.05 in² (1.5…35 mm²) - flexible with ferrule
- [Ics] Rated Service Breaking Capacity 15 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz 7.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz 5 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz 40 kA 100 % EN/IEC 60947-2 - <= 125 V DC
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz between phases 415 V AC 50/60 Hz between phases 440 V AC 50/60 Hz between phases <= 125 V DC
- Breaking Capacity 40 kA Icu <= 125 V DC EN/IEC 60947-2 30 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 15 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 10 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F14332 on Powermatic Associates is $389.00. Order now.
