Part#:M9F23140

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

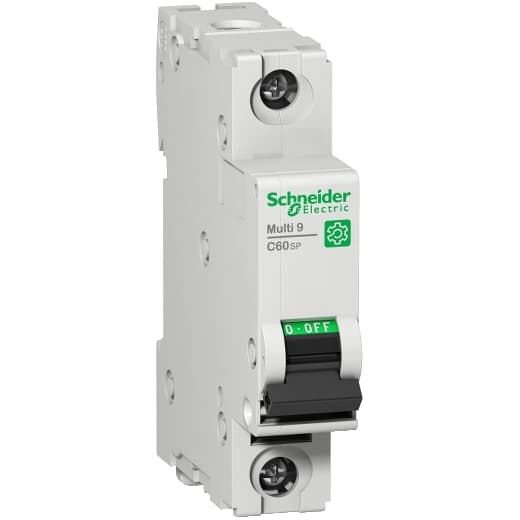

Schneider Electric M9F23140 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed for a single pole configuration. It features a rated current of 40A and is compliant with UL1077 standards. The MCB has a rated insulation voltage (Ui) of 500V, a DC rated voltage of 60Vdc, and an AC operating voltage (Ue) of 415V. It is capable of handling an impulse voltage (Uimp) of 6kV. The short circuit breaking rating is specified as 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 277Vac and 65Vdc. The rated voltage for phase-to-neutral applications is 277V. This product ensures protection for 1 pole and is characterized by a D tripping curve.

Product Details

  • Breaking Capacity
    10 kA AIR 65 V DC UL 1077 10 kA AIR 65 V DC CSA C22.2 No 235 3 kA Icu 415 V AC EN/IEC 60947-2 10 kA Icu 240 V AC EN/IEC 60947-2 20 kA Icu 60 V DC EN/IEC 60947-2 3 kA Icu 415 V AC GB 14048.2 10 kA Icu 240 V AC GB 14048.2
  • [Ics] Rated Service Breaking Capacity
    2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 20 kA 100 % EN/IEC 60947-2 - 60 V DC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 20 kA 100 % GB 14048.2 - 60 V DC
  • Standards
    EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
  • Product Certifications
    IEC CCC UR CSA
  • Connections - Terminals
    Tunnel type terminal top or bottom) 0.00…0.05 in² (1…35 mm²) AWG 18...AWG 2) - rigid Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 3) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC
  • Magnetic Tripping Limit
    12 x In +/- 20 % AC 17 x In +/- 20 % DC
  • Network Type
    DC AC
  • Tightening Torque
    30.98 lbf.in (3.5 N.m) top or bottom
  • Provision For Padlocking
    Padlockable
  • Depth
    2.83 in (72 mm)
  • Earth-Leakage Protection
    Without
  • Wire Stripping Length
    0.55 in (14 mm) top or bottom
  • Electrical Durability
    10000 cycles
  • Mechanical Durability
    20000 cycles
  • Width
    0.71 in (18 mm)
  • 9 Mm Pitches
    2
  • Height
    3.19 in (81 mm)
  • Color
    Gray
  • Local Signalling
    ON/OFF indication
  • Control Type
    Toggle
  • Contact Position Indicator
    Yes
  • Mounting Mode
    Clip-on
  • Mounting Support
    DIN rail
  • [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
  • [Ui] Rated Insulation Voltage
    500 V AC EN/IEC 60947-2
  • Suitability For Isolation
    Yes EN/IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • Curve Code
    D
  • Device Short Name
    C60SP
  • Device Application
    Distribution
  • Product Name
    Multi 9 C60
  • Poles Description
    1P
  • Range
    Multi 9
  • Line Rated Current
    40 A 77 °F (25 °C) EN/IEC 60947-2
  • Number Of Protected Poles
    1
  • Product Or Component Type
    Miniature circuit-breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F23140 on Powermatic Associates is $117.00. Order now.
