M9F23408 Schneider Electric Industrial Automation Components
Part#:M9F23408
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

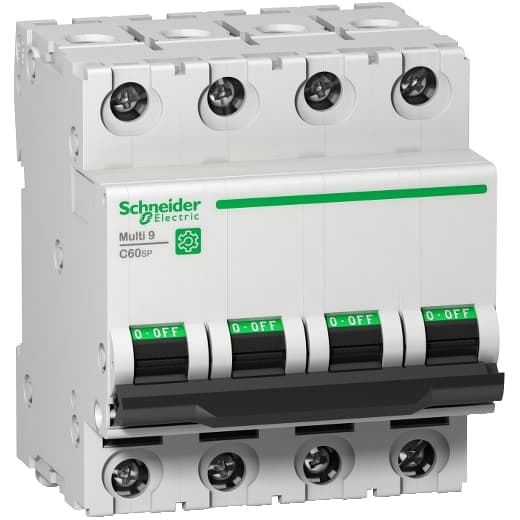

Schneider Electric M9F23408 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed with a 4 Pole configuration and a rated current of 8A. It features a short circuit breaking rating of 14kA AIR at 240Vac and 10kA AIR at 480Y/277Vac. All four poles are protected, and it operates with a D tripping curve. This MCB is compliant with UL1077 standards.
Product Details
- Range Multi 9
- Suitability For Isolation Yes EN/IEC 60947-2
- Contact Position Indicator Yes
- Provision For Padlocking Padlockable
- Device Short Name C60SP
- Curve Code D
- Width 2.83 in (72 mm)
- Color Gray
- Line Rated Current 8 A 77 °F (25 °C) EN/IEC 60947-2
- Poles Description 4P
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Height 3.19 in (81 mm)
- Product Or Component Type Miniature circuit-breaker
- Mounting Support DIN rail
- Earth-Leakage Protection Without
- Device Application Distribution
- Control Type Toggle
- Number Of Protected Poles 4
- Trip Unit Technology Thermal-magnetic
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Electrical Durability 10000 cycles
- Product Name Multi 9 C60
- Magnetic Tripping Limit 12 x In +/- 20 % AC
- Mechanical Durability 20000 cycles
- Network Type AC
- Local Signalling ON/OFF indication
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Mounting Mode Clip-on
- 9 Mm Pitches 8
- Depth 2.83 in (72 mm)
- Tightening Torque 22.13 lbf.in (2.5 N.m) top or bottom
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
- Breaking Capacity 14 kA AIR 240 V AC UL 1077 14 kA AIR 240 V AC CSA C22.2 No 235 10 kA AIR 480Y/277 V AC UL 1077 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/
- Product Certifications IEC CCC UR CSA
- Standards EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
- [Ics] Rated Service Breaking Capacity 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
