M9F23416 Schneider Electric Industrial Automation Components

Name: M9F23416
Brand: Schneider Electric
Price: 416 USD
Availability: BackOrder

Part#:M9F23416

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

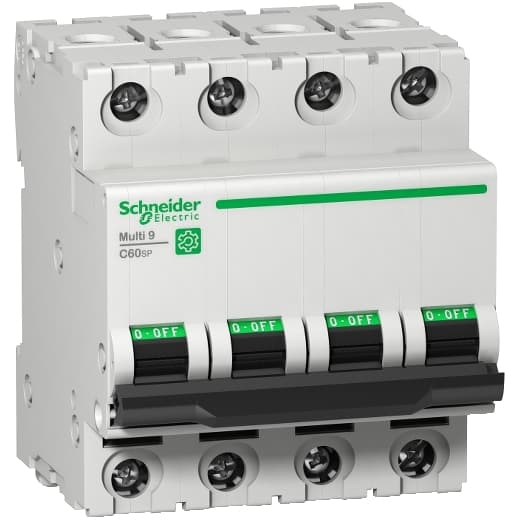

Schneider Electric M9F23416 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed with a 4-pole configuration and a rated current of 16A. It features a rated insulation voltage (Ui) of 500V and a rated impulse voltage (Uimp) of 6kV. The MCB offers a short circuit breaking rating of 14kA AIR at 240Vac and 10kA AIR at 480Y/277Vac, with all four poles protected. It operates with a D tripping curve, compliant with UL1077 standards for safety and performance.

Product Details

Control Type
Toggle
Range
Multi 9
Trip Unit Technology
Thermal-magnetic
Product Name
Multi 9 C60
Magnetic Tripping Limit
12 x In +/- 20 % AC
9 Mm Pitches
8
Earth-Leakage Protection
Without
Device Application
Distribution
Suitability For Isolation
Yes conforming to EN/IEC 60947-2
Contact Position Indicator
Yes
Depth
2.83 in (72 mm)
Network Type
AC
Height
3.19 in (81 mm)
Provision For Padlocking
Padlockable
Device Short Name
C60SP
Curve Code
D
[Ui] Rated Insulation Voltage
500 V AC EN/IEC 60947-2
Color
Gray
Poles Description
4P
[Uimp] Rated Impulse Withstand Voltage
6 kVEN/IEC 60947-2

Mechanical Durability

20000 cycles

Line Rated Current

16 A 77 °F (25 °C) EN/IEC 60947-2

Local Signalling

ON/OFF indication

Wire Stripping Length

0.55 in (14 mm) top or bottom

Mounting Mode

Clip-on

Width

2.83 in (72 mm)

Number Of Protected Poles

Product Or Component Type

Miniature circuit-breaker

Mounting Support

DIN rail

Tightening Torque

22.13 lbf.in (2.5 N.m) top or bottom

Electrical Durability

10000 cycles

[Ue] Rated Operational Voltage

240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz

Connections - Terminals

Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²

Standards

EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235

Product Certifications

IEC CCC UR CSA

[Ics] Rated Service Breaking Capacity

4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC

Breaking Capacity

14 kA AIR 240 V AC UL 1077 14 kA AIR 240 V AC CSA C22.2 No 235 10 kA AIR 480Y/277 V AC UL 1077 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
