M9F42108 Schneider Electric Industrial Automation Components
Part#:M9F42108
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

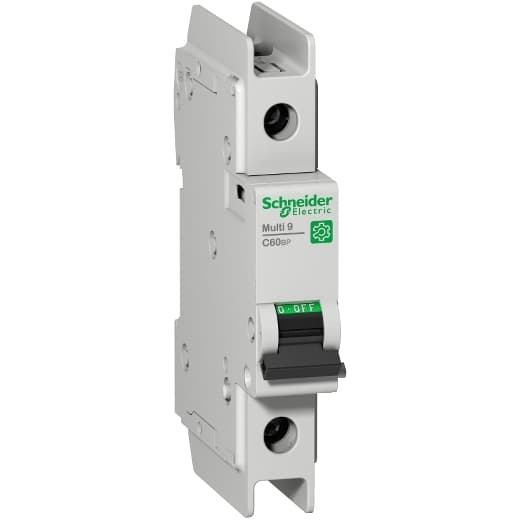

Schneider Electric M9F42108 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed for a single pole configuration. It features a rated current of 8A and is compliant with UL489 standards. The MCB operates with a rated insulation voltage (Ui) of 500V, a DC rated voltage of 60Vdc, and an AC rated voltage of 240V phase-to-neutral and 415V phase-to-phase. It has a rated impulse voltage (Uimp) of 6kV. The short circuit breaking rating is specified as 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 277Vac and 60Vdc. The device protects one pole and employs a C tripping curve.
Product Details
- Suitability For Isolation Yes EN/IEC 60947-2
- 9 Mm Pitches 2
- Device Application Distribution
- Poles Description 1P
- Product Name Multi 9 C60
- Device Short Name C60BP
- Curve Code C
- Local Signalling ON/OFF indication
- Number Of Protected Poles 1
- Contact Position Indicator Yes
- Range Multi 9
- Trip Unit Technology Thermal-magnetic
- Height 4.06 in (103 mm)
- Line Rated Current 8 A 77 °F (25 °C) EN/IEC 60947-2
- Mounting Mode Clip-on
- Electrical Durability 10000 cycles
- Product Or Component Type Miniature circuit-breaker
- Mounting Support DIN rail
- Mechanical Durability 20000 cycles
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Depth 2.83 in (72 mm)
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Width 0.71 in (18 mm)
- Control Type Toggle
- Earth-Leakage Protection Without
- Color Gray
- Provision For Padlocking Padlockable
- Tightening Torque 22.13 lbf.in (2.5 N.m) top or bottom
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Magnetic Tripping Limit 8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
- Network Type DC AC
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
- Product Certifications IEC CCC CSA UL
- Standards EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
- [Ics] Rated Service Breaking Capacity 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 15 kA 75 % GB 14048.2 - 60 V DC 15 kA 75 % EN/IEC 60947-2 - 60 V DC
- Breaking Capacity 3 kA Icu 415 V AC EN/IEC 60947-2 10 kA Icu 240 V AC EN/IEC 60947-2 20 kA Icu 60 V DC EN/IEC 60947-2 3 kA Icu 415 V AC GB 14048.2 10 kA Icu 240 V AC GB 14048.2 20 kA Icu 60 V DC GB 14048.2 10 kA AIR 277 V AC UL 489 14 kA
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
