Part#:M9F52230

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

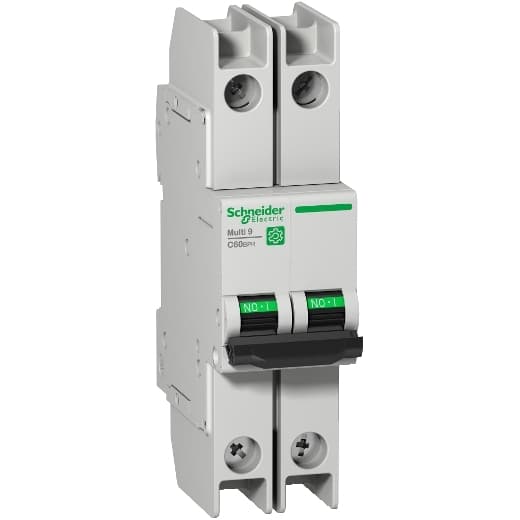

Schneider Electric M9F52230 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed with a 2 Pole configuration and a rated current of 30A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. The MCB offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. It supports a rated voltage (AC) phase-to-phase of 440 V and has 2 protected poles. The tripping curve for this device is classified as type C.

Product Details

  • Breaking Capacity
    6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 14 kA AIR 240 V AC UL 489 10 k
  • [Ics] Rated Service Breaking Capacity
    4.5 kA 75 % GB 14048.2 - 240 V AC 7.5 kA 75 % GB 14048.2 15 kA 75 % GB 14048.2 4.5 kA 75 % EN/IEC 60947-2 - 125 V DC 7.5 kA 75 % EN/IEC 60947-2 - 440 V AC 15 kA 75 % EN/IEC 60947-2 - 415 V AC
  • Product Certifications
    IEC CCC CSA UL
  • Standards
    EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
  • Magnetic Tripping Limit
    8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
  • Network Type
    AC DC
  • Connections - Terminals
    Ring terminal top or bottom)
  • Earth-Leakage Protection
    Without
  • Tightening Torque
    17.70 lbf.in (2 N.m) top or bottom
  • Electrical Durability
    10000 cycles
  • Depth
    2.83 in (72 mm)
  • Mechanical Durability
    20000 cycles
  • Provision For Padlocking
    Padlockable
  • Width
    1.42 in (36 mm)
  • Color
    Gray
  • 9 Mm Pitches
    4
  • Height
    5.00 in (127 mm)
  • Mounting Support
    DIN rail
  • Mounting Mode
    Clip-on
  • Local Signalling
    ON/OFF indication
  • Control Type
    Toggle
  • Contact Position Indicator
    Yes
  • [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
  • [Ui] Rated Insulation Voltage
    500 V AC EN/IEC 60947-2
  • Suitability For Isolation
    Yes conforming to EN/IEC 60947-2
  • Curve Code
    C
  • Trip Unit Technology
    Thermal-magnetic
  • Device Short Name
    C60BPR
  • Line Rated Current
    30 A 77 °F (25 °C) EN/IEC 60947-2
  • Device Application
    Distribution
  • Poles Description
    2P
  • Product Name
    Multi 9 C60
  • Number Of Protected Poles
    2
  • Product Or Component Type
    Miniature circuit-breaker
  • Range
    Multi 9

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F52230 on Powermatic Associates is $409.50. Order now.
