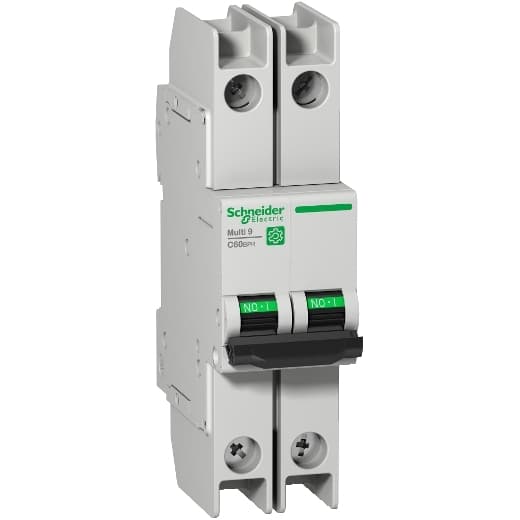

M9F52235 Schneider Electric Industrial Automation Components

Product Details

• Local Signalling
  ON/OFF indication
• Tightening Torque
  17.70 lbf.in (2 N.m) top or bottom
• Device Short Name
  C60BPR
• Trip Unit Technology
  Thermal-magnetic
• 9 Mm Pitches
  4
• Product Or Component Type
  Miniature circuit-breaker
• Contact Position Indicator
  Yes
• Earth-Leakage Protection
  Without
• Mechanical Durability
  20000 cycles
• Mounting Support
  DIN rail
• Range
  Multi 9
• Curve Code
  C
• Control Type
  Toggle
• Provision For Padlocking
  Padlockable
• Product Name
  Multi 9 C60
• Line Rated Current
  35 A 77 °F (25 °C) EN/IEC 60947-2
• Depth
  2.83 in (72 mm)
• Suitability For Isolation
  Yes conforming to EN/IEC 60947-2
• [Uimp] Rated Impulse Withstand Voltage
  6 kVEN/IEC 60947-2
• Electrical Durability
  10000 cycles
Poles Description
2P
Mounting Mode
Clip-on
Color
Gray
Width
1.42 in (36 mm)
Device Application
Distribution
[Ui] Rated Insulation Voltage
500 V AC EN/IEC 60947-2
Number Of Protected Poles
2
Height
5.00 in (127 mm)
Connections - Terminals
Ring terminal top or bottom)
Network Type
AC DC
Magnetic Tripping Limit
8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
[Ue] Rated Operational Voltage
240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
Standards
EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
Product Certifications
IEC CCC CSA UL
[Ics] Rated Service Breaking Capacity
4.5 kA 75 % GB 14048.2 - 240 V AC 7.5 kA 75 % GB 14048.2 15 kA 75 % GB 14048.2 4.5 kA 75 % EN/IEC 60947-2 - 125 V DC 7.5 kA 75 % EN/IEC 60947-2 - 440 V AC 15 kA 75 % EN/IEC 60947-2 - 415 V AC
Breaking Capacity
6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 14 kA AIR 240 V AC UL 489 10 k
