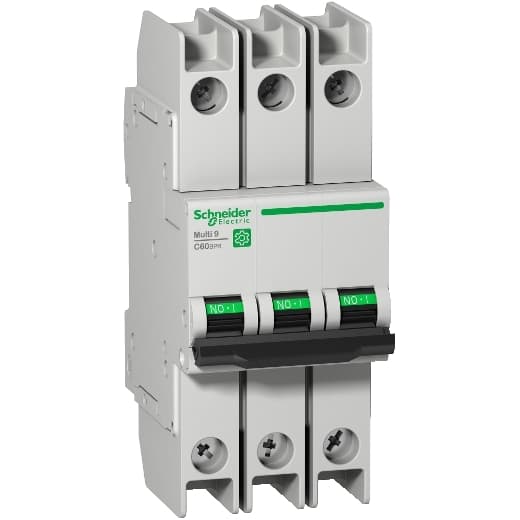

M9F52302 Schneider Electric Industrial Automation Components

Product Details

• Range
  Multi 9
• Mounting Support
  DIN rail
• Line Rated Current
  2 A 77 °F (25 °C) EN/IEC 60947-2
• Color
  Gray
• Product Or Component Type
  Miniature circuit-breaker
• Earth-Leakage Protection
  Without
• Depth
  2.83 in (72 mm)
• Poles Description
  3P
• Suitability For Isolation
  Yes EN/IEC 60947-2
• Contact Position Indicator
  Yes
• Electrical Durability
  10000 cycles
• Number Of Protected Poles
  3
• Height
  5.00 in (127 mm)
• Connections - Terminals
  Ring terminal top or bottom)
• Device Short Name
  C60BPR
• Magnetic Tripping Limit
  8.5 x In +/- 20 % AC
• [Ui] Rated Insulation Voltage
  500 V AC EN/IEC 60947-2
• Product Name
  Multi 9 C60
• Trip Unit Technology
  Thermal-magnetic
• Device Application
  Distribution
Curve Code
C
Network Type
AC
Mounting Mode
Clip-on
Control Type
Toggle
[Uimp] Rated Impulse Withstand Voltage
6 kVEN/IEC 60947-2
9 Mm Pitches
6
Mechanical Durability
20000 cycles
Width
2.13 in (54 mm)
Provision For Padlocking
Padlockable
Local Signalling
ON/OFF indication
Tightening Torque
17.70 lbf.in (2 N.m) top or bottom
[Ue] Rated Operational Voltage
240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
Standards
EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
Product Certifications
IEC CCC CSA UL
[Ics] Rated Service Breaking Capacity
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
Breaking Capacity
6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 14 kA AIR 240 V AC UL 489 10 k
