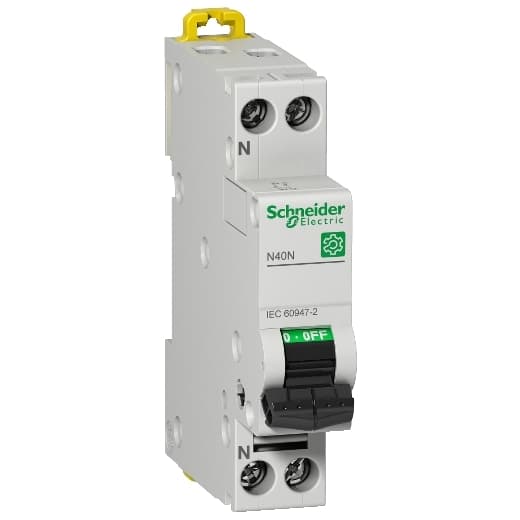

M9P22604 Schneider Electric Industrial Automation Components

Product Details

• Tightening Torque
  17.70 lbf.in (2 N.m) top or bottom
• Number Of Protected Poles
  1
• Network Frequency
  50/60 Hz
• Local Signalling
  ON/OFF indication
• Electrical Durability
  20000 cycles
• Breaking Capacity
  10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
• Contact Position Indicator
  Yes
• 9 Mm Pitches
  2
• Product Or Component Type
  Miniature circuit-breaker
• Curve Code
  C
• [Uimp] Rated Impulse Withstand Voltage
  4 kVEN/IEC 60947-2
• Device Application
  Distribution
• Height
  3.19 in (81 mm)
• Range
  Multi 9
• Network Type
  AC
• [Ics] Rated Service Breaking Capacity
  7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz
• Mounting Mode
  Clip-on
• Color
  Gray
• Product Name
  Multi 9 N40
• Trip Unit Technology
  Thermal-magnetic
Limitation Class
3 EN/IEC 60947-2
Width
0.71 in (18 mm)
Poles Description
1P + N
Control Type
Toggle
Mechanical Durability
20000 cycles
Suitability For Isolation
Yes EN/IEC 60947-2
Device Short Name
N40N
[Ue] Rated Operational Voltage
240 V AC 50/60 Hz between phase and neutral
[Ui] Rated Insulation Voltage
500 V AC 50/60 Hz EN/IEC 60947-2
Net Weight
0.25 lb(US) (0.115 kg)
Earth-Leakage Protection
Separate block
Line Rated Current
4 A 122 °F (50 °C) EN/IEC 60947-2
Standards
EN/IEC 60947-2
Mounting Support
DIN rail
Provision For Padlocking
Padlockable
Magnetic Tripping Limit
8.5 x In +/- 20 % AC
Depth
3.07 in (78 mm)
Neutral Position
Left
Wire Stripping Length
0.51 in (13 mm) top or bottom
Connections - Terminals
Tunnel type terminal top or bottom) 0.00…0.02 in² (0.75…16 mm²) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (0.33…10 mm²) - flexible Tunnel type terminal top or bottom) 0.00…0.02 in² (0.33…10 mm²) - flexible with ferrule
