MA4IMA161 Schneider Electric Industrial Automation Components

MA4IMA161 on Powermatic Associates
Schneider Electric

Part#:MA4IMA161

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

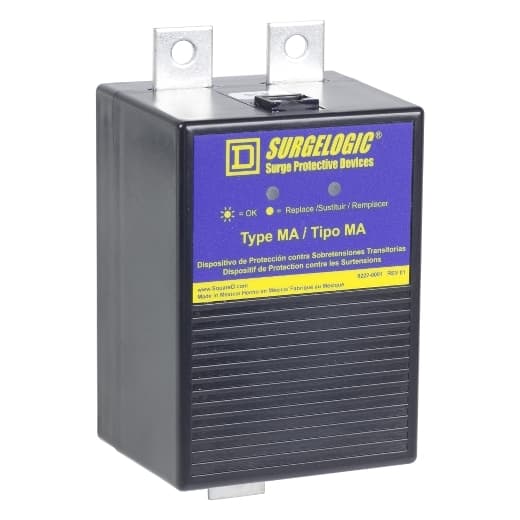

Schneider Electric - MA4IMA161

Product Details

  • Range
    Surgelogic
  • Depth
    2.69 in (68.3 mm)
  • Surge Current
    160 kA
  • Nominal Discharge Current
    20 kA
  • SCCR
    200 kA
  • Device Short Name
    IMA
  • Width
    3.26 in (82.8 mm)
  • Product
    Surge protection module
  • Mounting Support
    Panel mounting
  • Accessory Category
    Replacement part
  • Height
    6.25 in (158.8 mm)
  • MCOV
    320 V
  • Wiring Configuration
    4-wire
  • Local Signalling
    Status LED green normal operation
  • Number Of Phases
    3 phase
  • Provided Equipment
    Alarm enable/disable switch
  • Voltage Rating
    480Y/277 V AC
  • Connection
    Terminals

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MA4IMA161 on Powermatic Associates is $675.00. Order now.
