MA8IMA161 Schneider Electric Industrial Automation Components

MA8IMA161 on Powermatic Associates
Schneider Electric

Part#:MA8IMA161

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

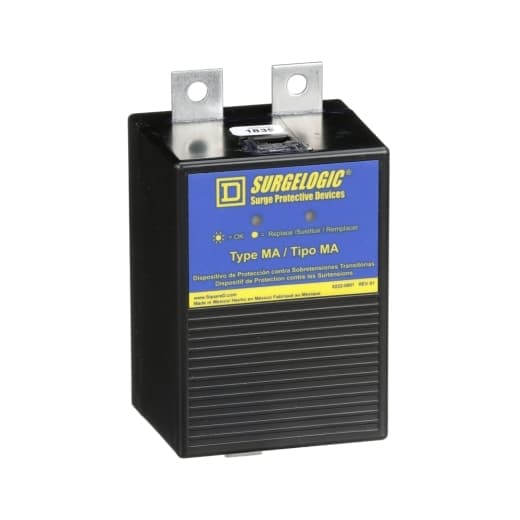

Schneider Electric - MA8IMA161

Product Details

  • Depth
    2.69 in (68.3 mm)
  • Height
    6.25 in (158.8 mm)
  • Mounting Support
    Panel mounting
  • Local Signalling
    Status LED green normal operation
  • Provided Equipment
    Alarm enable/disable switch
  • Width
    3.26 in (82.8 mm)
  • Nominal Discharge Current
    20 kA
  • SCCR
    200 kA
  • MCOV
    420 V
  • Surge Current
    160 kA per phase
  • Number Of Phases
    3 phase
  • Connection
    Terminals
  • Wiring Configuration
    4-wire
  • Voltage Rating
    600Y/347 V AC
  • Accessory Category
    Replacement part
  • Device Short Name
    IMA
  • Range
    Surgelogic
  • Product
    Surge protection module

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MA8IMA161 on Powermatic Associates is $675.00. Order now.

MA8IMA161 Related Documents

Instruction Sheet-1631031608746.pdfProduct Datasheet-1631031608751.pdfCatalog-1631031608767.pdf
