Part#:MGA36500

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

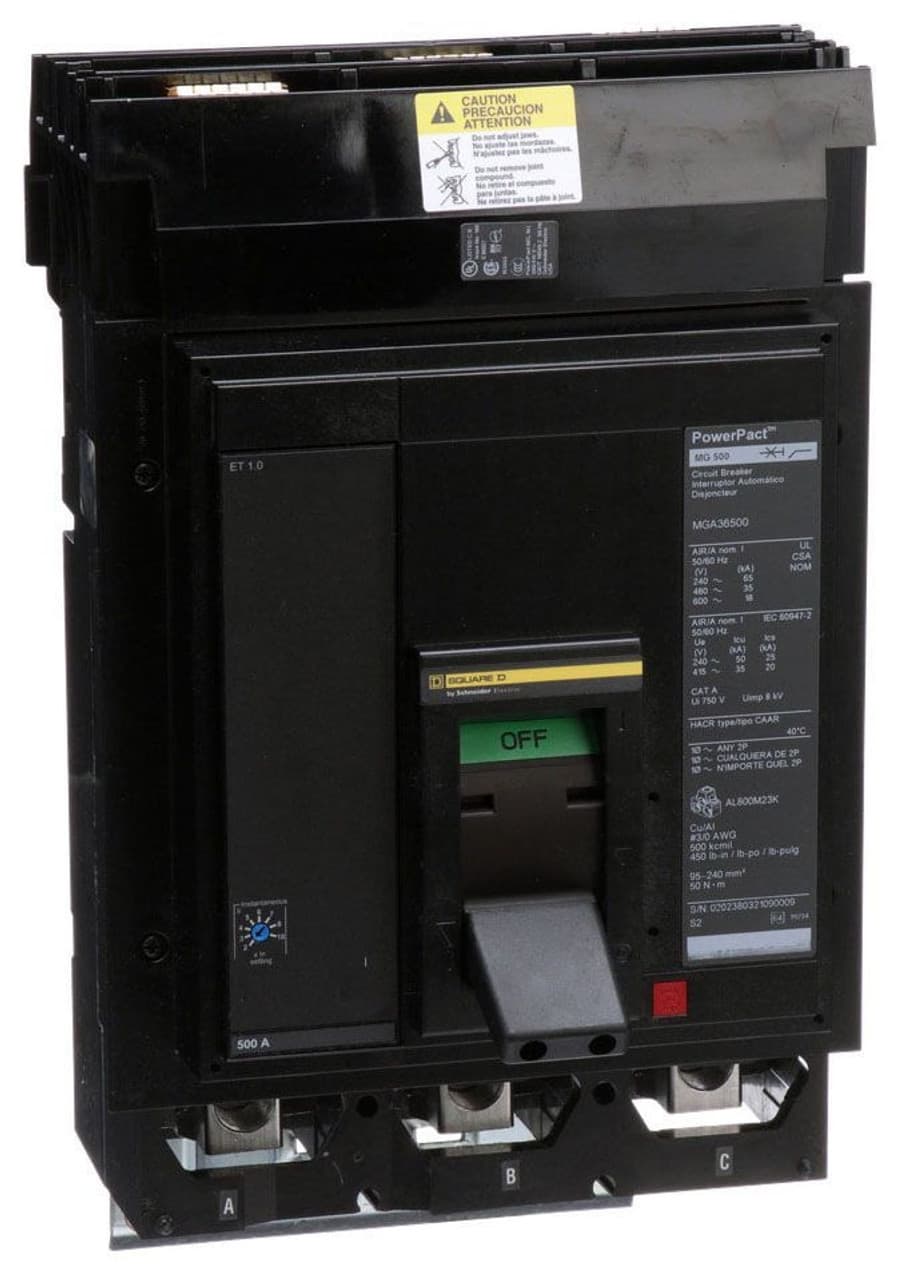

Square D by Schneider Electric MGA36500 is a Moulded Case Circuit Breaker (MCCB) designed for mounting on I-line with line side isolated plug-on jaws and a mechanical I-Line bracket mechanism for robust attachment. It features a PowerPact M-Frame 800 ET1 (LI) 3P 500A 600Vac 18kA I-line design, with a net height of 210 mm, width of 153 mm, and depth of 204 mm. This 3-pole (3P) circuit breaker has a rated current of 500A and operates with an I-line connection across ABC phases. It belongs to the PowerPacT MGA sub-range and supports a rated voltage of 600Vac 600Y/347Vac, with a rated operating voltage (Ue) of 600 V. The MGA36500 offers protection functions including Long-time protection (L) and Instantaneous protection (I), with a trip current rating of 500 AT and a frame current rating of 800 AF. Its short circuit breaking rating is specified as 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, and 18kA at 600Vac and 600Y/347Vac, all in accordance with UL489 standards. The trip unit is an electronic ET1.0 (LI) series without a display, featuring utilisation category A and protection settings for overload fixed at 500A and short-circuit protection adjustable between 1.5 to 12 times the rated current (1200A to 6000A).

Product Details

  • TS PIK:
    108425140
  • Shipping Width:
    12.00 In.
  • Shipping Length:
    18.00 In.
  • UPC:
    78590146790
  • Shipping Weight:
    28.95 lbs.
  • Shipping Height:
    11.00 In.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MGA36500 on Powermatic Associates is $8,168.00. Order now.

Similar products from: Schneider Electric Industrial Automation Components
