MPZB7S40F25K Schneider Electric Industrial Automation Components

MPZB7S40F25K on Powermatic Associates
Schneider Electric

Part#:MPZB7S40F25K

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

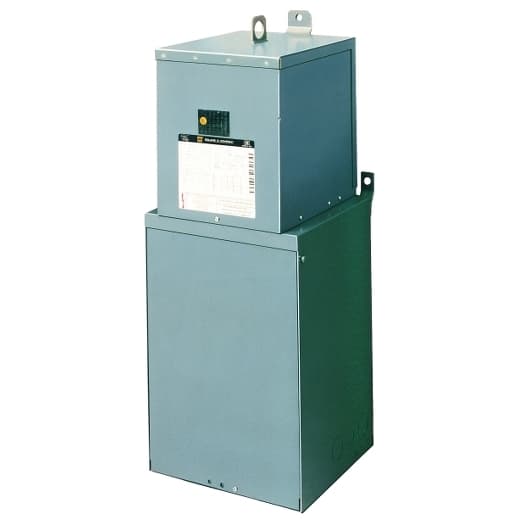

Schneider Electric - MPZB7S40F25K

Product Details

  • Number Of Circuits
    10
  • Secondary Voltage
    120/240 V
  • Enclosure Type
    NEMA 3R hot-rolled steel
  • Full Capacity Taps
    2 5 % FCBN
  • Enclosure Code
    AA
  • Phase
    1 phase
  • Power Rating
    7.5 kVA
  • Product
    Sealed Transformer
  • Certifications
    UL Listed
  • Temperature Rise
    115 °C
  • Type
    Mini Power-Zone
  • Interior Type
    NQ Panelboard interior
  • Winding Material
    Copper
  • Insulation Temperature
    365 °F (185 °C)
  • Interrupt Rating
    25 kA
  • Primary Voltage
    480 V
  • Number Of Spaces Available
    10
  • Circuit Breaker Type
    Primary main breaker Secondary main breaker Feeder breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MPZB7S40F25K on Powermatic Associates is $7,987.00. Order now.
