NSYCRN108300T Schneider Electric Industrial Automation Components

NSYCRN108300T on Powermatic Associates
Schneider Electric

Part#:NSYCRN108300T

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

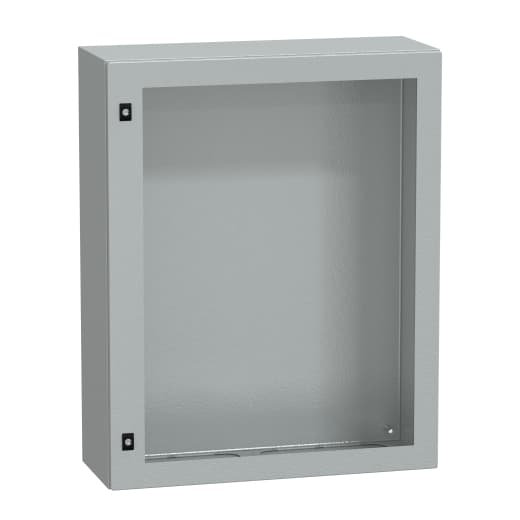

Schneider Electric - NSYCRN108300T

Product Details

  • Device Composition
    1 body 1 door 1 lock 2 cable gland plate bottom
  • Product Certifications
    CUL UL DNV-GL
  • Removable Parts
    Door by hinges Cable gland plate by screws
  • Material
    Body steel Door steel and security glass
  • Body Type
    Sides made from a single folded section Back welded with double profile forming a protected sealed area
  • Standards
    IEC 62208
  • Net Weight
    68.34 lb(US) (31 kg)
  • Color
    Gray RAL 7035)
  • Door Opening Side
    Reversible 120 °)
  • Accessibility For Operation
    Front
  • Lock Type
    3 mm double-bar lock
  • Number Of Doors
    Front face 1
  • Mounting Plate Description
    Without mounting plate
  • Category
    Compact enclosure
  • Installation Accessory Type
    Wall-mounting
  • Enclosure Nominal Height
    39.37 in (1000 mm)
  • Enclosure Nominal Width
    31.50 in (800 mm)
  • Range
    Spacial
  • Surface Finish
    epoxy-polyester powder
  • Type Of Gland Plate
    Standard
  • Door Type
    Glass
  • Enclosure Nominal Depth
    11.81 in (300 mm)
  • Application
    Multi-purpose
  • Product Name
    Spacial CRN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYCRN108300T on Powermatic Associates is $627.48. Order now.
