NSYCRN325200 Schneider Electric Industrial Automation Components

NSYCRN325200 on Powermatic Associates
Schneider Electric

Part#:NSYCRN325200

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

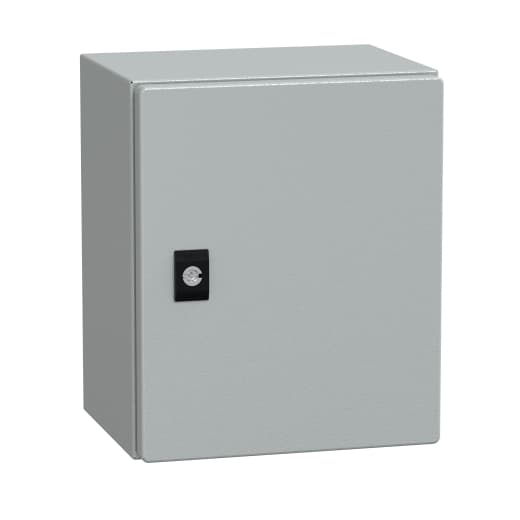

Schneider Electric NSYCRN325200 is a wall-mounted empty compact universal enclosure with a plain door, designed for wall mounting through wall fixing with 4 holes, sealed with plastic plugs to ensure an IP66 and NEMA 4 degree of protection. This enclosure, part of the CRN sub-range, measures 300 mm in height, 250 mm in width, and 200 mm in depth. It is constructed from steel and coated with epoxy-polyester painting for durability. The enclosure is finished in grey (RAL 7035) and features a 3 mm double-bar lock type for securing the contents.

Product Details

  • Device Composition
    1 body 1 cable gland plate 1 door 1 lock
  • Product Certifications
    UL CUL DNV-GL
  • Body Type
    Back welded with double profile forming a protected sealed area Sides made from a single folded section
  • Removable Parts
    Door by hinges Cable gland plate by screws
  • Net Weight
    9.57 lb(US) (4.34 kg)
  • Color
    Gray RAL 7035)
  • Material
    Body steel
  • Surface Finish
    epoxy-polyester powder
  • Standards
    IEC 62208
  • Number Of Doors
    Front face 1
  • Lock Type
    3 mm double-bar lock
  • Accessibility For Operation
    Front
  • Door Type
    Solid
  • Door Opening Side
    Reversible 120 °)
  • Type Of Gland Plate
    Standard
  • Mounting Plate Description
    Without mounting plate
  • Enclosure Nominal Height
    11.81 in (300 mm)
  • Installation Accessory Type
    Wall-mounting
  • Enclosure Nominal Width
    9.84 in (250 mm)
  • Enclosure Nominal Depth
    7.87 in (200 mm)
  • Range
    Spacial
  • Application
    Multi-purpose
  • Category
    Compact enclosure
  • Product Name
    Spacial CRN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYCRN325200 on Powermatic Associates is $91.93. Order now.
