NSYPLM86PG Schneider Electric Industrial Automation Components

NSYPLM86PG on Powermatic Associates
Schneider Electric

Part#:NSYPLM86PG

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

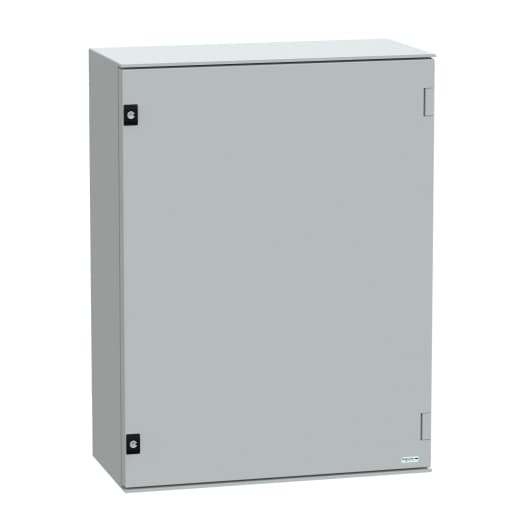

Schneider Electric - NSYPLM86PG

Product Details

  • Nominal Width
    25.04 in (636 mm)
  • Material
    polyester reinforced with fibreglass
  • Product Name
    Thalassa PLM
  • Door Type
    Solid
  • Category
    Compact enclosure
  • Mounting Plate Description
    Plain steel
  • Range
    Thalassa
  • Device Short Name
    PLM
  • Enclosure Type
    Multi-purpose
  • Lock Type
    3 mm double-bar lock
  • Nominal Depth
    11.81 in (300 mm)
  • Color
    Gray RAL 7035)
  • Enclosure Mounting
    Wall mounted
  • Accessibility For Operation
    Front
  • Nominal Height
    33.35 in (847 mm)
  • Number Of Locks
    2
  • Product Certifications
    UL
  • Removable Parts
    Door by hinges Mounting plate by fixing element
  • Standards
    NEMA classification 13 IEC 62208 NEMA classification 4X
  • Device Composition
    1 body 1 door 1 mounting plate 2 lock

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYPLM86PG on Powermatic Associates is $510.00. Order now.

NSYPLM86PG Related Documents

Instruction Sheet-1631029729620.pdfProduct Datasheet-1631029729626.pdf
