NSYS3D141030DP Schneider Electric Industrial Automation Components

NSYS3D141030DP on Powermatic Associates
Schneider Electric

Part#:NSYS3D141030DP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

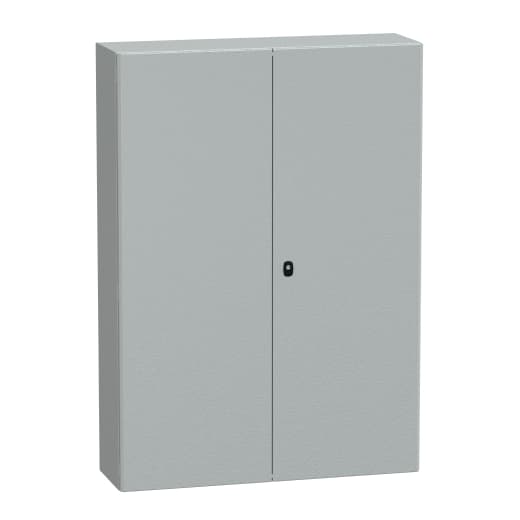

Schneider Electric - NSYS3D141030DP

Product Details

  • Mounting Plate Description
    Plain
  • Product Name
    Spacial S3D
  • Installation Accessory Type
    Wall-mounting
  • Net Weight
    235.89 lb(US) (107 kg)
  • Door Type
    Solid
  • Application
    Multi-purpose
  • Number Of Doors
    Front face 2
  • Surface Finish
    Enclosure epoxy-polyester powder
  • Enclosure Nominal Width
    39.37 in (1000 mm)
  • Accessibility For Operation
    Front
  • Door Opening Side
    Reversible 120 °)
  • Standards
    IEC 62208
  • Category
    Compact enclosure
  • Range
    Spacial
  • Type Of Gland Plate
    Standard
  • Color
    Enclosure Gray RAL 7035)
  • Enclosure Nominal Depth
    11.81 in (300 mm)
  • Lock Type
    3 points lock, 3 mm double-bar
  • Enclosure Nominal Height
    55.12 in (1400 mm)
  • Material
    Enclosure steel Mounting plate galvanised steel
  • Body Type
    Gutter-shaped front rail double sheet thickness Single piece body
  • Removable Parts
    Door by hinges Cable gland plate by screws Mounting plate by fixing element
  • Device Composition
    1 body 2 cable gland plate 2 door with lock 1 mounting plate
  • Product Certifications
    DNV GL CUL UL LR BV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYS3D141030DP on Powermatic Associates is $1,892.72. Order now.
