NSYTBP19168T Schneider Electric Industrial Automation Components

NSYTBP19168T on Powermatic Associates
Schneider Electric

Part#:NSYTBP19168T

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

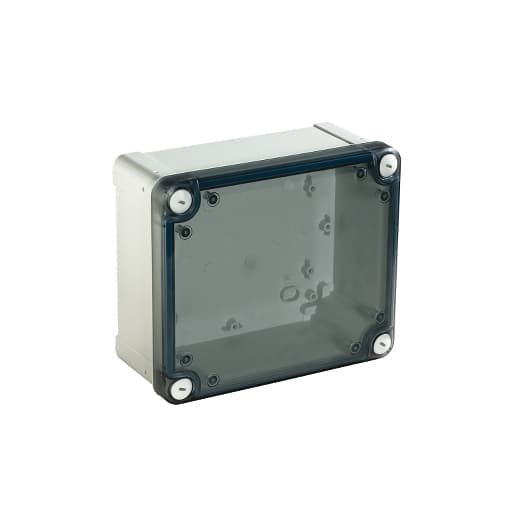

Schneider Electric - NSYTBP19168T

Product Details

  • Device Application
    Multi-purpose
  • Removable Parts
    Cover by captive screws
  • Height
    7.56 in (192 mm)
  • Enclosure Mounting
    Wall mounted
  • Material
    polycarbonate
  • Internal Height
    6.89 in (175 mm)
  • Type Of Front Cover
    Low transparent cover
  • Mounting Location
    Outdoor
  • Category
    Industrial box
  • Body Type
    One piece moulded
  • Internal Width
    5.91 in (150 mm)
  • Product Name
    Thalassa TBP
  • Lock Type
    Captive screw flat outside sealed area
  • Range
    Thalassa
  • Width
    6.46 in (164 mm)
  • Cover Fixing
    Plastic screws
  • Net Weight
    1.01 lb(US) (0.46 kg)
  • Electrical Insulation Class
    Class II
  • Depth
    3.43 in (87 mm)
  • Internal Depth
    3.15 in (80 mm)
  • Product Certifications
    TÜV UL
  • Color
    Gray RAL 7035) Transparent
  • Standards
    IEC 62208 UL 508 A
  • Device Composition
    1 body 1 cover 4 cover screw

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYTBP19168T on Powermatic Associates is $41.90. Order now.
