NSYTBS19128 Schneider Electric Industrial Automation Components

NSYTBS19128 on Powermatic Associates
Schneider Electric

Part#:NSYTBS19128

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

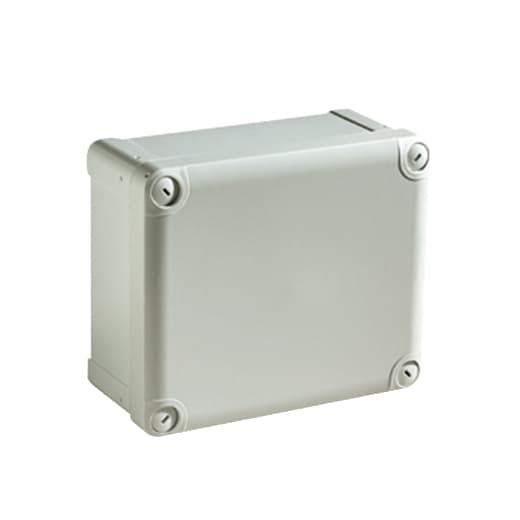

Schneider Electric - NSYTBS19128

Product Details

  • Height
    7.56 in (192 mm)
  • Quantity Per Set
    Set of 2
  • IP Degree Of Protection
    IP66 conforming to NEMA 4.4X
  • Category
    Industrial box
  • Cover Fixing
    Plastic screws
  • Color
    Gray RAL 7035)
  • Electrical Insulation Class
    Class II
  • Enclosure Mounting
    Wall mounted
  • Lock Type
    Captive screw flat outside sealed area
  • Ambient Air Temperature For Storage
    5…104 °F (-15…40 °C)
  • Product Name
    Thalassa TBS
  • Glow Wire Resistance
    1202 °F (650 °C) IEC 60695-2-11
  • Device Application
    Multi-purpose
  • Width
    4.76 in (121 mm)
  • Standards
    IEC 62208
  • Operating Temperature
    -13…140 °F (-25…60 °C)
  • Type Of Front Cover
    Low plain cover
  • IK Degree Of Protection
    IK07 conforming to IEC 62262
  • Internal Width
    4.13 in (105 mm)
  • Depth
    3.43 in (87 mm)
  • Product Certifications
    TÜV
  • Removable Parts
    Cover by captive screws
  • Internal Height
    6.89 in (175 mm)
  • Range
    Thalassa
  • Material
    ABS (acrylonitrile butadiene-styrene)
  • Internal Depth
    3.15 in (80 mm)
  • Body Type
    One piece moulded
  • Net Weight
    0.74 lb(US) (0.335 kg)
  • Device Composition
    1 body 1 cover 4 cover screw

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYTBS19128 on Powermatic Associates is $13.84. Order now.
