NSYTBS29248T Schneider Electric Industrial Automation Components

NSYTBS29248T on Powermatic Associates
Schneider Electric

Part#:NSYTBS29248T

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

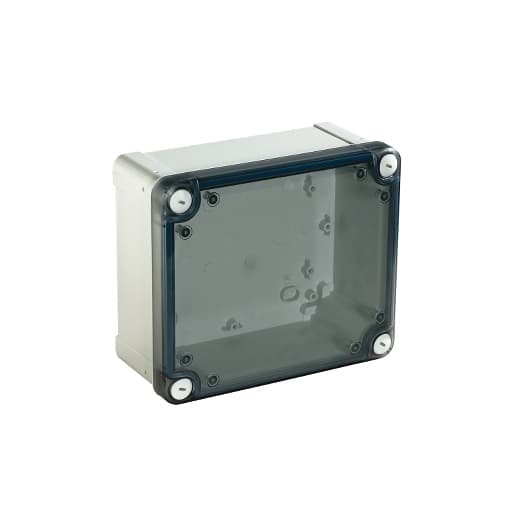

Schneider Electric - NSYTBS29248T

Product Details

  • Product Certifications
    TÜV
  • Depth
    3.46 in (88 mm)
  • Lock Type
    Captive screw flat outside sealed area
  • Ambient Air Temperature For Storage
    5…104 °F (-15…40 °C)
  • Range
    Thalassa
  • Body Type
    One piece moulded
  • Glow Wire Resistance
    1202 °F (650 °C) IEC 60695-2-11
  • IK Degree Of Protection
    IK07 conforming to IEC 62262
  • Category
    Industrial box
  • Cover Fixing
    Plastic screws
  • Electrical Insulation Class
    Class II
  • Width
    9.49 in (241 mm)
  • Internal Depth
    3.15 in (80 mm)
  • Standards
    IEC 62208
  • Product Name
    Thalassa TBS
  • Material
    ABS (acrylonitrile butadiene-styrene)
  • Device Application
    Multi-purpose
  • Type Of Front Cover
    Low transparent cover
  • IP Degree Of Protection
    IP66 conforming to NEMA 4.4X
  • Height
    11.46 in (291 mm)
  • Enclosure Mounting
    Wall mounted
  • Removable Parts
    Cover by captive screws
  • Operating Temperature
    -13…140 °F (-25…60 °C)
  • Internal Height
    10.83 in (275 mm)
  • Net Weight
    2.03 lb(US) (0.92 kg)
  • Internal Width
    8.86 in (225 mm)
  • Color
    Gray RAL 7035) Transparent
  • Device Composition
    1 body 1 cover 4 cover screw

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYTBS29248T on Powermatic Associates is $83.55. Order now.
