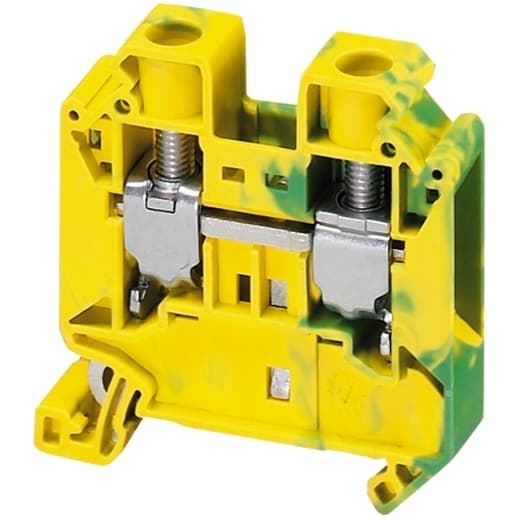

NSYTRV162PE Schneider Electric Industrial Automation Components

Product Details

• Length
  2.19 in (55.5 mm)
• Number Of Connections
  2
• Product Or Component Type
  Terminal block
• Width
  0.48 in (12.2 mm)
• Number Of Measurement Input
  2
• Device Short Name
  TRV
• Connection Position
  Sideways
• Wire Stripping Length
  0.55 in (14 mm)
• Line Rated Current
  101 A EN/IEC 60947-7-1
• Nominal Cross Section
  0.02 in² (16 mm²)
• Tightening Torque
  22.13…26.55 lbf.in (2.5…3 N.m)
• Dielectric Constant
  3.7 at 1 MHz
• Range
  Linergy
• Mounting Mode
  Clip-on
• Material
  Polyamide 6/6 insulating case
• Terminal Block Type
  Protective earth
• Terminal Block Level
  1
• Height
  2.17 in (55 mm)
• Product Compatibility
  Spacial enclosures
• Color
  Green-yellow
Product Name
Linergy TR
Net Weight
1.65 oz (46.85 g)
Quantity Per Set
Set of 50
Flame Retardance
V0 0.03 in (0.8 mm) UL 94
Creep Resistance
500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
Surface Resistance
1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
Tool Type
Connection screwdriver Disconnection screwdriver
Connections - Terminals
1 x screw terminal upstream 1 x screw terminal downstream
Resistivity
10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
Dielectric Loss
0.01 at 1 MHz IEC 60250 0.01 at 1 MHz VDE 0303-T4
Cable Cross Section
0.00…0.04 in² (1.5…25 mm²), solid 0.00…0.02 in² (1…16 mm²), flexible with cable end 0.00…0.04 in² (1.5…25 mm²), flexible without cable end
Range Compatibility
Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
