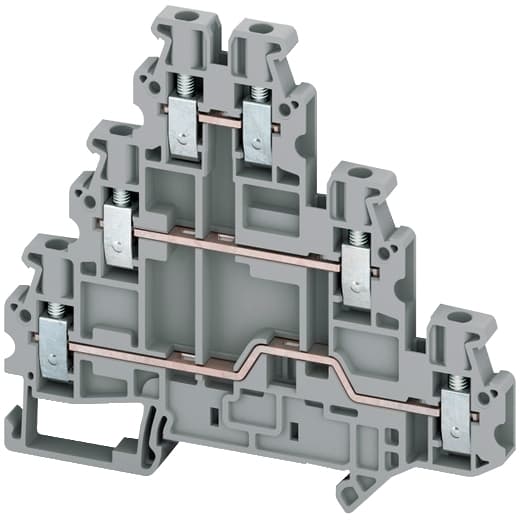

NSYTRV26T Schneider Electric Industrial Automation Components

Product Details

• Accessory / Separate Part Category
  Connection accessory
• Quantity Per Set
  Set of 50
• Wire Stripping Length
  0.35 in (9 mm)
• Net Weight
  0.89 oz (25.1 g)
• Product Name
  Linergy TR
• Number Of Measurement Input
  3
• Width
  0.20 in (5.2 mm)
• Terminal Block Level
  3
• [Ue] Rated Operational Voltage
  500 V EN/IEC 60947-7-1
• Product Compatibility
  Spacial enclosures
• Terminal Block Type
  Passthrough
• Color
  Gray
• Tightening Torque
  4.43…5.31 lbf.in (0.5…0.6 N.m)
• Mounting Mode
  Clip-on
• Connection Position
  Sideways
• Line Rated Current
  20 A EN/IEC 60947-7-1
• Range
  Linergy
• Nominal Cross Section
  0.00 in² (2.5 mm²)
• Height
  3.05 in (77.5 mm)
• Product Or Component Type
  Terminal block
Length
3.54 in (90 mm)
Dielectric Constant
3.7 at 1 MHz
Flame Retardance
V0 0.03 in (0.8 mm) UL 94
Device Short Name
TRV
Number Of Connections
2
Resistivity
10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
Tool Type
Connection screwdriver Disconnection screwdriver
Connections - Terminals
1 x screw terminal upstream M3) 1 x screw terminal downstream M3)
Surface Resistance
1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
Dielectric Loss
0.01 at 1 MHz IEC 60250 0.01 at 1 MHz VDE 0303-T4
Creep Resistance
500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
Cable Cross Section
0.00…0.01 in² (0.14…4 mm²), solid with cable end 0.00…0.00 in² (0.2…2.5 mm²), flexible with cable end 0.00…0.01 in² (0.14…4 mm²), solid without cable end 0.00…0.01 in² (0.14…4 mm²), flexible without cable end
Material
Polyamide 6/6 insulating case Copper alloy connector and screw Copper alloy commoning link Chromium-nickel steel spring
Range Compatibility
Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
