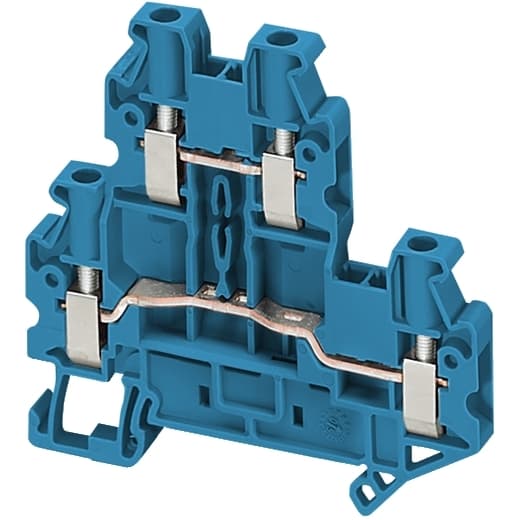

NSYTRV44DBL Schneider Electric Industrial Automation Components

Product Details

• Terminal Block Level
  2
• Terminal Block Type
  Passthrough
• Tightening Torque
  5.31…7.08 lbf.in (0.6…0.8 N.m)
• Color
  Blue
• Net Weight
  0.60 oz (17 g)
• Accessory / Separate Part Category
  Connection accessory
• Connection Position
  Sideways
• Number Of Measurement Input
  4
• Device Short Name
  TRV
• Product Name
  Linergy TR
• Quantity Per Set
  Set of 50
• Range
  Linergy
• Length
  2.75 in (69.9 mm)
• Wire Stripping Length
  0.35 in (9 mm)
• Mounting Mode
  Clip-on
• Number Of Connections
  2
• Nominal Cross Section
  0.01 in² (4 mm²)
• Height
  2.56 in (65 mm)
• Dielectric Constant
  3.7 at 1 MHz
• Product Compatibility
  Spacial enclosures
Product Or Component Type
Terminal block
Width
0.24 in (6.2 mm)
Flame Retardance
V0 0.03 in (0.8 mm) UL 94
Tool Type
Connection screwdriver Disconnection screwdriver
Resistivity
10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
Creep Resistance
500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
Surface Resistance
1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
Connections - Terminals
1 x screw terminal upstream M3) 1 x screw terminal downstream M3)
Dielectric Loss
0.01 at 1 MHz IEC 60250 0.01 at 1 MHz VDE 0303-T4
Cable Cross Section
0.00…0.01 in² (0.14…6 mm²), solid with cable end 0.00…0.01 in² (0.2…4 mm²), flexible with cable end 0.00…0.01 in² (0.14…6 mm²), flexible without cable end 0.00…0.01 in² (0.14…6 mm²), solid without cable end
Material
Polyamide 6/6 insulating case Copper alloy connector and screw Copper alloy commoning link Chromium-nickel steel spring
[Ue] Rated Operational Voltage
600 V CSA 600 V cURus 800 V EN/IEC 60947-7-1 440 V ATEX Exe II Ex II 2 GD
Line Rated Current
30 A CSA 30 A cURus 30 A EN/IEC 60947-7-1 25.5 A ATEX Exe II Ex II 2 GD
Range Compatibility
Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
