QO24L70S Schneider Electric Industrial Automation Components

QO24L70S on Powermatic Associates
Schneider Electric

Part#:QO24L70S

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

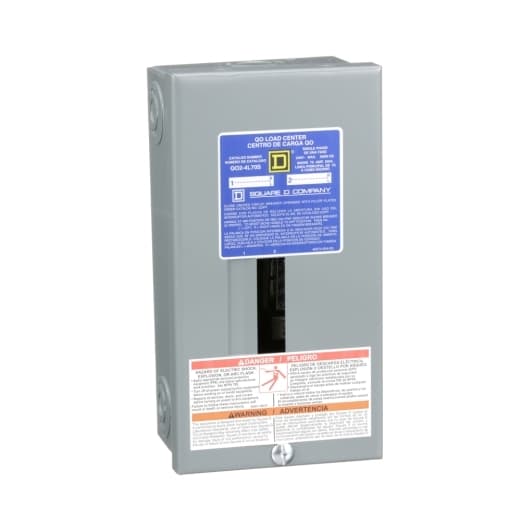

Square D by Schneider Electric QO24L70S is a load center designed for surface mounting with a rated current of 70A. It features a connection type of lugs and dimensions of H236mm x W122mm (H9.29" x W4.8"), accommodating 2-spaces. This load center is protected by a NEMA 1 rated welded sheet steel enclosure and includes a tin-plated aluminum busbar. It operates on a single-phase (1PH-3W) network with a rated voltage of 120Vac/240Vac. The QO24L70S can support up to 4 single pole circuits or 2 tandem breakers. It is compatible with cross-sections ranging from 12AWG to 2AWG for aluminum lugs and 14AWG to 4AWG for copper lugs. Additionally, it has a short circuit breaking rating of 10kA.

Product Details

  • Electrical Connection
    Lugs
  • Width
    4.80 in (122 mm)
  • Maximum Number Of Single Pole Circuits
    4
  • Rated Current
    70 A
  • Enclosure Material
    Welded sheet steel
  • Number Of Spaces
    2
  • Product Type
    Load Center
  • Voltage Rating
    120/240 V AC
  • Load Center Type
    Main lugs
  • Ground Bar
    Grounding bar (ordered separately)
  • Box Number
    2
  • Max Short Circuit Current Rating
    65 kA
  • Wiring Configuration
    3-wire
  • Surface Finish
    Baked enamel Gray
  • Marketing Trade Name
    QO
  • Maximum Number Of Tandem Breakers
    2
  • Busbar Material
    Tin plated aluminium busbar
  • Cover Type
    Surface cover
  • Number Of Phases
    1 phase
  • Height
    9.29 in (236 mm)
  • Wire Size
    AWG 12...AWG 3 aluminium AWG 14...AWG 4 copper
  • Tightening Torque
    Main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper Main lugs 45 lb.in, AWG 3, aluminium/copper Main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper Main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
