QO3100BNRB Schneider Electric Industrial Automation Components

QO3100BNRB on Powermatic Associates
Schneider Electric

Part#:QO3100BNRB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

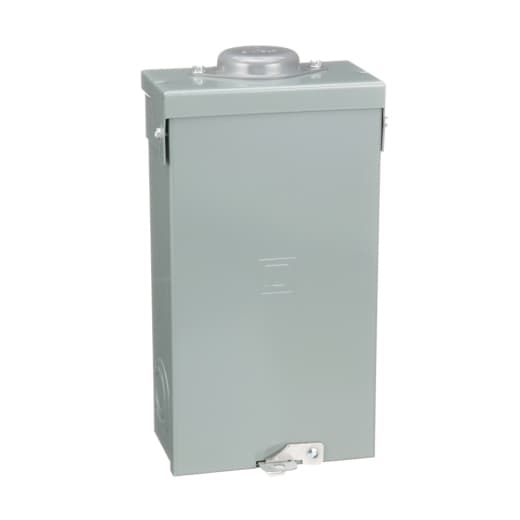

Square D by Schneider Electric QO3100BNRB is a load center designed for surface mounting with a rated current of 100A. It features a connection type of lugs and dimensions of H335mm x W176mm (H13.19" x W6.93"), fitting within a compact space with 3-spaces available. This load center is built with a welded galvannealed steel enclosure and tin-plated copper busbar, ensuring durability and conductivity. It is equipped to handle 3 single pole circuits and offers a short circuit breaking rating of 22kA. The degree of protection provided by its design is classified as NEMA 3R, suitable for certain outdoor or indoor environments where protection against weather elements is necessary.

Product Details

  • Rated Current
    100 A
  • Surface Finish
    Baked enamel Gray
  • Busbar Material
    Tin plated copper
  • Width
    6.93 in (176 mm)
  • Max Short Circuit Current Rating
    22 kA
  • Marketing Trade Name
    QO
  • Box Number
    10R
  • Number Of Phases
    3 phase
  • Enclosure Type
    Weatherproof enclosure
  • Number Of Spaces
    3
  • Ground Bar
    Grounding bar (ordered separately)
  • Load Center Type
    Main lugs
  • Enclosure Material
    Welded galvannealed steel
  • Product Type
    Enclosure
  • Electrical Connection
    Lugs
  • Cover Type
    Surface cover
  • Maximum Number Of Tandem Breakers
    0
  • Height
    13.19 in (335 mm)
  • Tightening Torque
    35 lb.in, AWG 14...AWG 10, copper 35 lb.in, AWG 12...AWG 10, aluminium Main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper Main lugs 50 lb.in, AWG 3...AWG 2, aluminium/copper Main lugs 35 lb.in, AWG 14...AWG 10, copper Main lugs

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO3100BNRB on Powermatic Associates is $207.00. Order now.
