Product description

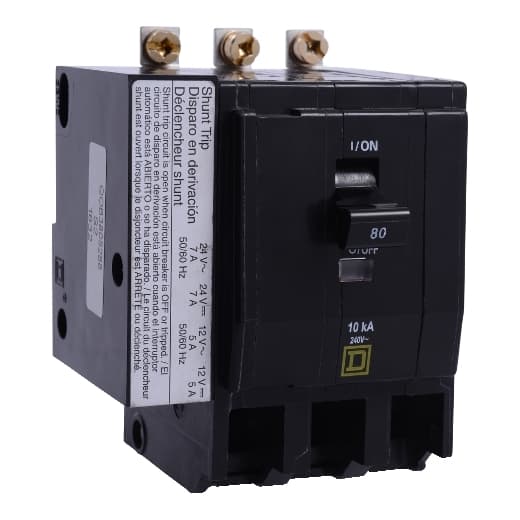

Square D by Schneider Electric QOB3805288 is a Miniature Circuit Breaker (MCB) featuring a shunt trip coil. This bolt-on mounted MCB is designed with a rated current of 80A and utilizes a bolt-on connection for secure installation. It operates at a rated voltage of 120V to 240V AC and is suitable for systems with 3 poles. The QOB3805288 offers a short circuit breaking rating of 10kA at 240Vac and 5kA at 48Vdc, ensuring protection against overcurrents. It is equipped with ring tongue type terminals for reliable wire connections.

Product Details

  • Circuit Breaker Type
    Standard
  • Options
    Shunt trip 12/24 V AC/DC
  • Range
    QO
  • Depth
    2.91 in (73.91 mm)
  • Mounting Type
    Bolt-on
  • Width
    2.25 in (57.15 mm)
  • Tightening Torque
    40.71 lbf.in (4.6 N.m)
  • Current Rating
    80 A
  • Height
    3.5 in (88.90 mm)
  • Product
    Miniature circuit-breaker
  • Number Of Poles
    3P
  • Ratings
    HACR rated
  • Electrical Connection
    Ring tongue
  • Number Of Panel Spaces
    4
  • Voltage Rating
    120/240 V AC 240 V AC 120 V AC
  • Interrupt Rating
    10 kA 120/240 V AC 50/60 Hz 10 kA 240 V AC 50/60 Hz 10 kA 120 V AC 50/60 Hz

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOB3805288 on Powermatic Associates is $692.00. Order now.
