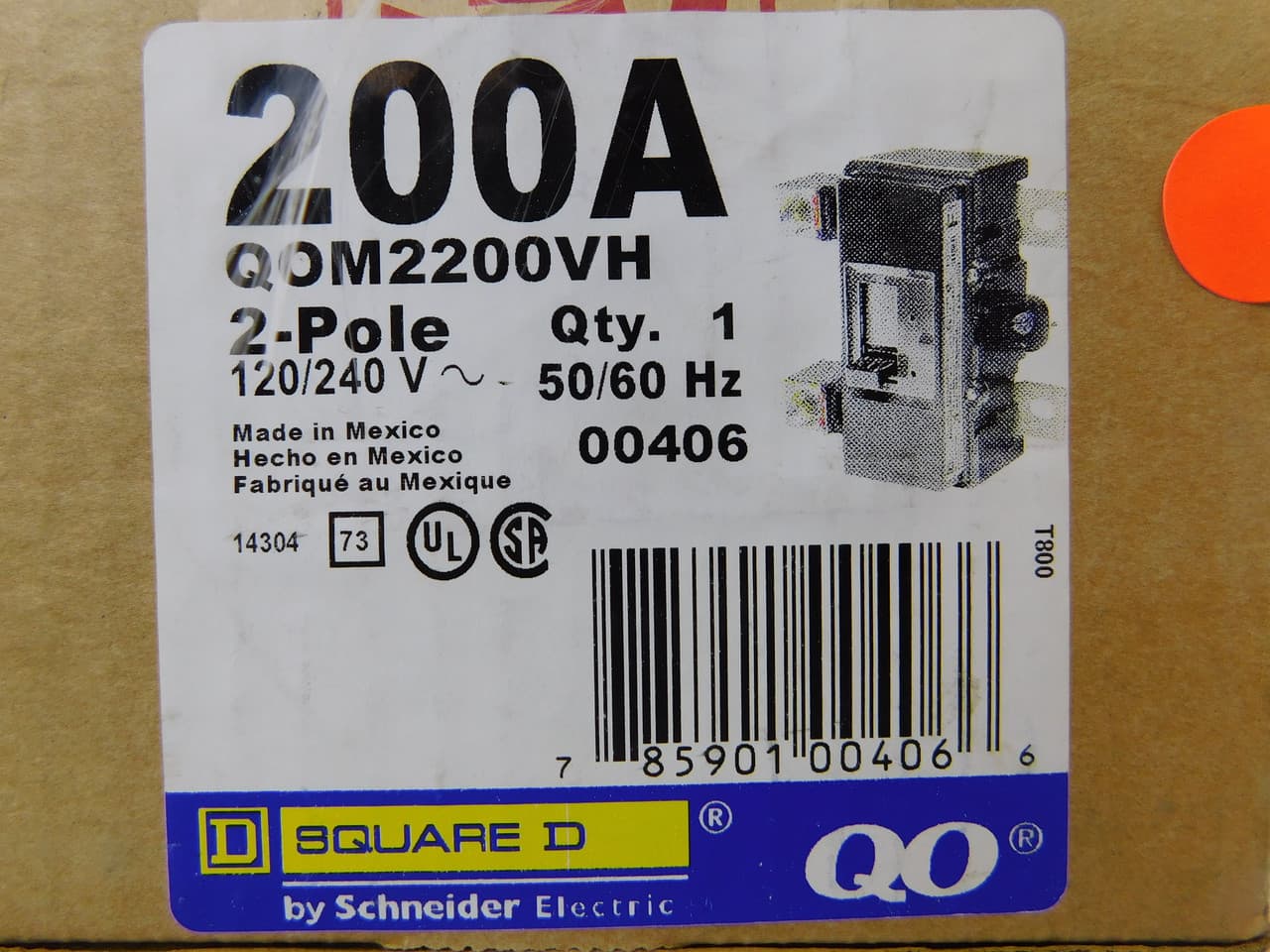

QOM2200VH Schneider Electric Industrial Automation Components

QOM2200VH on Powermatic Associates
Schneider Electric

Part#:QOM2200VH

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Square D by Schneider Electric QOM2200VH is a Miniature Circuit Breaker (MCB) designed for primary or main circuit breaker applications. It features a bolt-on mounting mode and a bolt-on connection type, ensuring secure installation. This MCB is rated for a current of 200A and can accommodate a voltage range of 120V to 240V AC. It is compatible with cables having a cross-section of 4AWG-300kcmil for both aluminum and copper wires, facilitated by lug-type terminals. The QOM2200VH is a 2-pole circuit breaker with a short circuit breaking rating of 22kA at 240Vac, making it suitable for a variety of electrical circuit protection needs.

Product Details

  • Electrical Connection
    Lugs
  • Height
    5.6 in (142.24 mm)
  • Depth
    5.07 in (128.78 mm)
  • Wire Size
    AWG 4...300 kcmil aluminium/copper
  • Circuit Breaker Type
    Standard
  • Width
    3.6 in (91.44 mm)
  • Frame Size
    QOM2
  • Product
    Circuit breaker
  • Number Of Poles
    2P
  • Load Center Type
    Main breaker
  • Range
    QO
  • Tightening Torque
    53.10 lbf.in (6 N.m) 0.01…0.10 in² (4…65 mm²) (AWG 12...AWG 2/0)
  • Mounting Type
    Bolt-on
  • Number Of Phases
    1 phase
  • Current Rating
    200 A
  • Shipping Height:
    4.00 In.
  • Series:
    QO
  • TS PIK:
    111079935
  • Volts:
    120/240 VAC
  • Shipping Width:
    7.00 In.
  • Interrupting Rating:
    22 kA
  • Approval:
    UL
  • UPC:
    78590100406
  • Wire Size:
    4 AWG to 300 KCMIL (Aluminum/Copper)
  • Shipping Weight:
    2.65 lbs.
  • Shipping Length:
    6.00 In.
  • Circuit Configuration:
    1-Phase
  • Amps:
    32 A
  • Voltage Rating
    120/240 V AC 120 V AC
  • For Use With
    QO load center Homeline load center
  • Interrupt Rating
    22 kA 120/240 V AC 50/60 Hz 22 kA 120 V AC 50/60 Hz

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOM2200VH on Powermatic Associates is $468.00. Order now.

QOM2200VH Related Documents

DataSheet.pdfInstallationOperator.pdfCatalog-1702168234314.pdf
