QOU220 Schneider Electric Industrial Automation Components

QOU220 on Powermatic Associates
Schneider Electric

Part#:QOU220

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

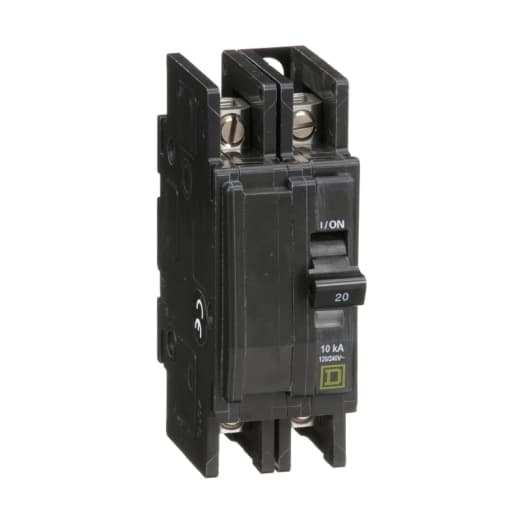

Square D by Schneider Electric QOU220 is a unit-mount Miniature Circuit Breaker (MCB) designed for securing electrical circuits. It features a 2-pole configuration and accommodates a wire cross-section of 14-2AWG for both aluminum and copper cables. This MCB is rated for a current of 20A and offers a short circuit breaking rating of 10kA at 240Vac and 5kA at 48Vdc. It supports a rated voltage of 120V and 240V for AC circuits and 48Vdc for DC circuits. The QOU220 is equipped with slotted box lugs connections on both the load and line sides, ensuring a secure and reliable connection. Terminal connections are facilitated via box lugs.

Product Details

  • Line Rated Current
    20 A
  • Depth
    2.95 in (74.93 mm)
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
  • Product Or Component Type
    Miniature circuit-breaker
  • Mounting Mode
    Unit mount
  • Circuit Breaker Type
    Standard
  • Height
    4.05 in (102.87 mm)
  • Range Of Product
    QOU
  • Width
    1.5 in (38.10 mm)
  • Circuit Breaker Application
    HACR and Switching Duty rated
  • AWG Gauge
    AWG 14...AWG 2 aluminium/copper
  • Electrical Connection
    Slotted box lugs, line side Slotted box lugs, load side
  • [Ue] Rated Operational Voltage
    120/240 V AC 120 V AC 48 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOU220 on Powermatic Associates is $92.46. Order now.
