Part#:RGF36120U31A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

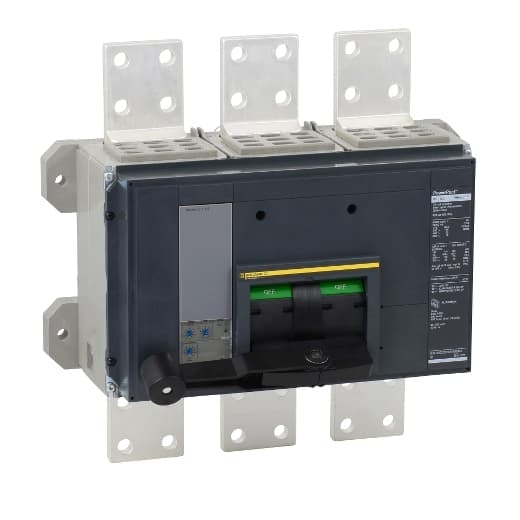

Square D by Schneider Electric RGF36120U31A is a Molded Case Circuit Breaker (MCCB) designed for mounting on a plate with a rated current of 1200A and a connection type of Busbar. It falls under the PowerPact RGF sub-range and is equipped to handle a rated voltage (AC) of 600V across 3 Poles. This MCCB features protection functions including Long-time (L) and Instantaneous (I) protection, with a trip current rating of 1200 AT and a frame current rating of 3000 AF. Its short circuit breaking rating is specified as 65kA at 240Vac, 35kA at both 480Y/277Vac and 480Vac, and 18kA at both 600Y/347Vac and 600Vac, covering all protected poles. The trip unit type integrated into this device is the Micrologic 3.0 (LI) Electronic, ensuring precise operation for the specified protection functions.

Product Details

  • Product Or Component Type
    Circuit breaker
  • Height
    16.24 in (412.50 mm)
  • Breaking Capacity Code
    G
  • Width
    16.53 in (419.86 mm)
  • Continuous Current Rating
    80 %
  • Number Of Poles
    3P
  • Depth
    14.49 in (368.05 mm)
  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)
  • Electrical Connection
    Busbar connection line Busbar connection load

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RGF36120U31A on Powermatic Associates is $34,740.00. Order now.
