RGF36160CU63AE1 Schneider Electric Industrial Automation Components

RGF36160CU63AE1 on Powermatic Associates
Schneider Electric

Part#:RGF36160CU63AE1

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

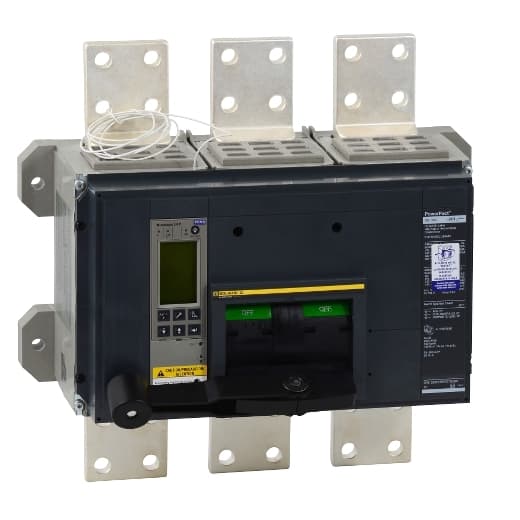

Square D by Schneider Electric RGF36160CU63AE1 is a molded case circuit breaker (MCCB) designed for mounting on a plate with a rated current of 1600A and a connection type of busbar. It falls under the PowerPact RGF sub-range and operates at a rated voltage of 600V AC. This 3-pole MCCB features protection functions including long-time protection (L), short-time protection with fixed time delay (S), and instantaneous protection (I), facilitated by a Micrologic 5.0P (LSI) electronic trip unit. It has a trip current rating of 1600 AT and a frame current rating of 3000 AF. The short circuit breaking rating varies with voltage: 65kA at 240Vac, 35kA at 480Y/277Vac and 480Vac, and 18kA at 600Y/347Vac and 600Vac, ensuring protection across all three poles.

Product Details

  • Electrical Connection
    Busbar connection line Busbar connection load
  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)
  • Continuous Current Rating
    100 %
  • Depth
    14.49 in (368.05 mm)
  • Width
    16.53 in (419.86 mm)
  • Breaking Capacity Code
    G
  • Height
    16.24 in (412.50 mm)
  • Number Of Poles
    3P
  • Communication Interface
    Modbus
  • Product Or Component Type
    Circuit breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RGF36160CU63AE1 on Powermatic Associates is $35,859.00. Order now.
