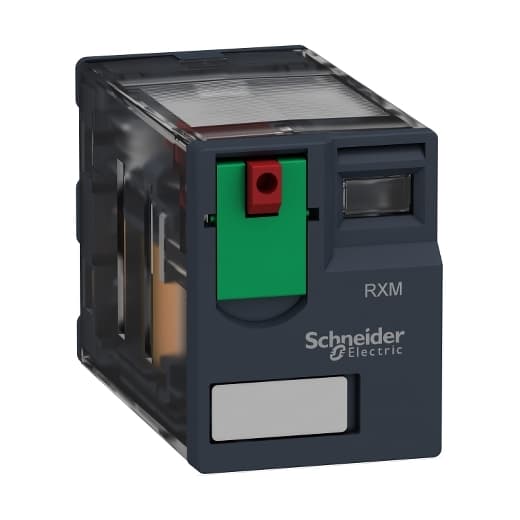

RXM2AB1F7 Schneider Electric Industrial Automation Components

Product Details

• Control Type
  Lockable test button
• Release Time
  20 ms
• Net Weight
  0.08 lb(US) (0.037 kg)
• [Ithe] Conventional Enclosed Thermal Current
  12 A -40…131 °F (-40…55 °C)
• Safety Reliability Data
  B10d = 100000
• Product Or Component Type
  Plug-in relay
• Maximum Switching Voltage
  250 V IEC
• Drop-Out Voltage Threshold
  >= 0.15 Uc
• Series Name
  Miniature
• Utilisation Coefficient
  20 %
• Minimum Switching Capacity
  170 mW 10 mA, 17 V
• Average Coil Resistance
  3630 Ohm 20 °C +/- 15 %
• Device Presentation
  Complete product
• Range Of Product
  Harmony Electromechanical Relays
• Shape Of Pin
  Flat
• Rated Operational Voltage Limits
  96...132 V AC
• [Uc] Control Circuit Voltage
  120 V AC 50/60 Hz
• Maximum Switching Capacity
  3000 VA/336 W
• Average Coil Consumption In VA
  1.2 60 Hz
• Device Short Name
  RXM
[Uimp] Rated Impulse Withstand Voltage
4 kV 1.2/50 µs
Mechanical Durability
10000000 cycles
Protection Category
RT I
Status LED
Without
Operate Time
20 ms
Operating Position
Any position
Test Levels
Level A
Contacts Type And Composition
2 C/O
Contacts Material
AgNi
Average Consumption
1.2 VA 60 Hz
Electrical Durability
100000 cycles resistive
Operating Rate
<= 1200 cycles/hour under load <= 18000 cycles/hour no-load
Resistive Rated Load
12 A 250 V AC 12 A 28 V DC
[Ui] Rated Insulation Voltage
250 V IEC 300 V CSA 300 V UL
[Ie] Rated Operational Current
12 A 28 V DC) NO IEC 12 A 250 V AC) NO IEC 6 A 28 V DC) NC IEC 6 A 250 V AC) NC IEC 12 A 28 V DC) UL 12 A 277 V AC) UL
