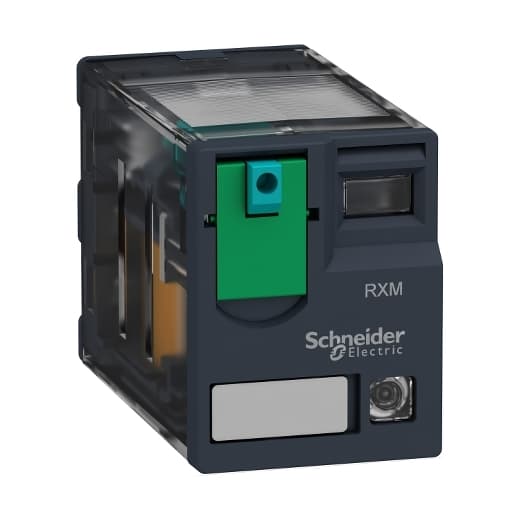

RXM2AB2FD Schneider Electric Industrial Automation Components

Product Details

• Status LED
  With
• Product Or Component Type
  Plug-in relay
• Electrical Durability
  100000 cycles resistive
• Safety Reliability Data
  B10d = 100000
• Utilisation Coefficient
  20 %
• Contacts Material
  AgNi
• [Uc] Control Circuit Voltage
  110 V DC
• Maximum Switching Voltage
  250 V IEC
• Operate Time
  20 ms
• Control Type
  Lockable test button
• [Uimp] Rated Impulse Withstand Voltage
  4 kV 1.2/50 µs
• Drop-Out Voltage Threshold
  >= 0.1 Uc
• Rated Operational Voltage Limits
  88...121 V DC
• [Ithe] Conventional Enclosed Thermal Current
  12 A -40…131 °F (-40…55 °C)
• CAD Overall Height
  3.26 in (82.8 mm)
• Device Short Name
  RXM
• Minimum Switching Capacity
  170 mW 10 mA, 17 V
• Protection Category
  RT I
• Range Of Product
  Harmony Electromechanical Relays
• Shape Of Pin
  Flat
Release Time
20 ms
Operating Position
Any position
Net Weight
0.08 lb(US) (0.037 kg)
Contacts Type And Composition
2 C/O
Maximum Switching Capacity
3000 VA/336 W
Mechanical Durability
10000000 cycles
Average Coil Consumption In W
0.9 W
CAD Overall Depth
3.16 in (80.35 mm)
Test Levels
Level A
Device Presentation
Complete product
Series Name
Miniature
Average Coil Resistance
13440 Ohm 20 °C +/- 10 %
Operating Rate
<= 1200 cycles/hour under load <= 18000 cycles/hour no-load
Resistive Rated Load
12 A 250 V AC 12 A 28 V DC
[Ui] Rated Insulation Voltage
250 V IEC 300 V CSA 300 V UL
[Ie] Rated Operational Current
12 A 28 V DC) NO IEC 12 A 250 V AC) NO IEC 6 A 28 V DC) NC IEC 6 A 250 V AC) NC IEC 12 A 28 V DC) UL 12 A 277 V AC) UL
