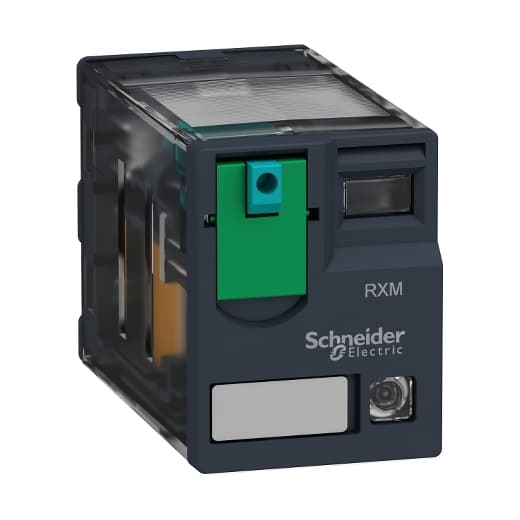

RXM4AB2FD Schneider Electric Industrial Automation Components

Product Details

• Status LED
  With
• [Uimp] Rated Impulse Withstand Voltage
  2.5 kV 1.2/50 µs
• Device Short Name
  RXM
• Contacts Material
  AgNi
• Control Type
  Lockable test button
• Mechanical Durability
  10000000 cycles
• Range Of Product
  Harmony Electromechanical Relays
• Maximum Switching Voltage
  250 V IEC
• Series Name
  Miniature
• Operate Time
  20 ms
• [Uc] Control Circuit Voltage
  110 V DC
• Product Or Component Type
  Plug-in relay
• Shape Of Pin
  Flat
• Contacts Type And Composition
  4 C/O
• Rated Operational Voltage Limits
  88...121 V DC
• [Ithe] Conventional Enclosed Thermal Current
  6 A -40…131 °F (-40…55 °C)
• Average Coil Consumption In W
  0.9 W
• Safety Reliability Data
  B10d = 100000
• Average Coil Resistance
  13440 Ohm 20 °C +/- 10 %
• Device Presentation
  Complete product
Drop-Out Voltage Threshold
>= 0.1 Uc
CAD Overall Depth
3.09 in (78.45 mm)
Electrical Durability
100000 cycles resistive
Protection Category
RT I
Utilisation Coefficient
20 %
Minimum Switching Capacity
170 mW 10 mA, 17 V
Operating Position
Any position
Net Weight
0.08 lb(US) (0.037 kg)
Maximum Switching Capacity
1500 VA/168 W
Test Levels
Level A
Release Time
20 ms
CAD Overall Height
3.11 in (79 mm)
Resistive Rated Load
6 A 250 V AC 6 A 28 V DC
Operating Rate
<= 1200 cycles/hour under load <= 18000 cycles/hour no-load
[Ui] Rated Insulation Voltage
250 V IEC 300 V CSA 300 V UL
[Ie] Rated Operational Current
3 A 28 V DC) NC IEC 3 A 250 V AC) NC IEC 6 A 28 V DC) NO IEC 6 A 250 V AC) NO IEC 6 A 277 V AC) UL 8 A 30 V DC) UL
