Part#:RXM4AB2JD

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

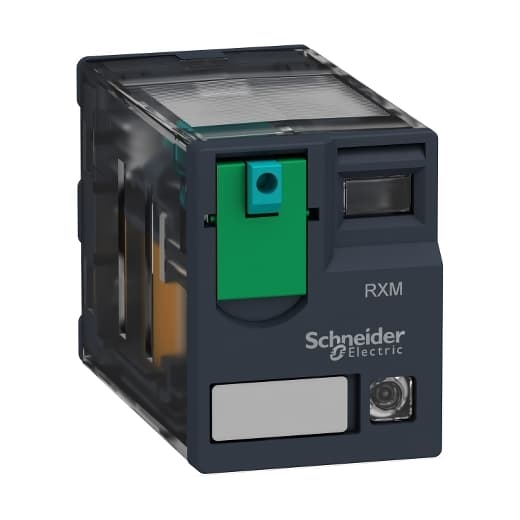

Schneider Electric RXM4AB2JD is a miniature plug-in relay from the RXM range, designed with 4C/O - 4PDT (4 Pole Double Throw) contacts made from an Ag/Ni - Silver - Nickel alloy. It operates with a control voltage of 12 Vdc and is rated for currents up to 6 A at both 250Vac (AC-1) and 28Vdc (DC-1). The relay offers a plug-in mounting mode and can function within an ambient air temperature range of -40 to +55 °C. It is protected to a degree of IP40 and has a current consumption of 0.075 A. This model features a visual position indicator through an LED, consumes 0.9 W of power, and provides electrical durability for up to 100,000 operations with a resistive load, alongside a mechanical durability of 10,000,000 operations at no load. Additionally, it includes a Lockable Test Button (LTB) for latching purposes.

Product Details

  • Device Short Name
    RXM
  • Utilisation Coefficient
    20 %
  • Average Coil Resistance
    160 Ohm 20 °C +/- 10 %
  • Protection Category
    RT I
  • Status LED
    With
  • Shape Of Pin
    Flat
  • Mechanical Durability
    10000000 cycles
  • [Ithe] Conventional Enclosed Thermal Current
    6 A -40…131 °F (-40…55 °C)
  • Contacts Material
    AgNi
  • Operate Time
    20 ms
  • Safety Reliability Data
    B10d = 100000
  • [Uc] Control Circuit Voltage
    12 V DC
  • Electrical Durability
    100000 cycles resistive
  • Operating Position
    Any position
  • Release Time
    20 ms
  • Series Name
    Miniature
  • Control Type
    Lockable test button
  • [Uimp] Rated Impulse Withstand Voltage
    2.5 kV 1.2/50 µs
  • Minimum Switching Capacity
    170 mW 10 mA, 17 V
  • Device Presentation
    Complete product
  • Range Of Product
    Harmony Electromechanical Relays
  • CAD Overall Height
    3.11 in (79 mm)
  • Product Or Component Type
    Plug-in relay
  • Maximum Switching Capacity
    1500 VA/168 W
  • Rated Operational Voltage Limits
    9.6...13.2 V DC
  • Contacts Type And Composition
    4 C/O
  • Maximum Switching Voltage
    250 V IEC
  • Average Coil Consumption In W
    0.9 W
  • CAD Overall Depth
    3.09 in (78.45 mm)
  • Test Levels
    Level A
  • Net Weight
    0.08 lb(US) (0.037 kg)
  • Drop-Out Voltage Threshold
    >= 0.1 Uc
  • Resistive Rated Load
    6 A 250 V AC 6 A 28 V DC
  • Operating Rate
    <= 1200 cycles/hour under load <= 18000 cycles/hour no-load
  • [Ui] Rated Insulation Voltage
    250 V IEC 300 V CSA 300 V UL
  • [Ie] Rated Operational Current
    3 A 28 V DC) NC IEC 3 A 250 V AC) NC IEC 6 A 28 V DC) NO IEC 6 A 250 V AC) NO IEC 6 A 277 V AC) UL 8 A 30 V DC) UL

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RXM4AB2JD on Powermatic Associates is $8.30. Order now.
