SR2B201FU Schneider Electric Industrial Automation Components

Product Details

• Isolation Voltage
  1780 V
• Product Or Component Type

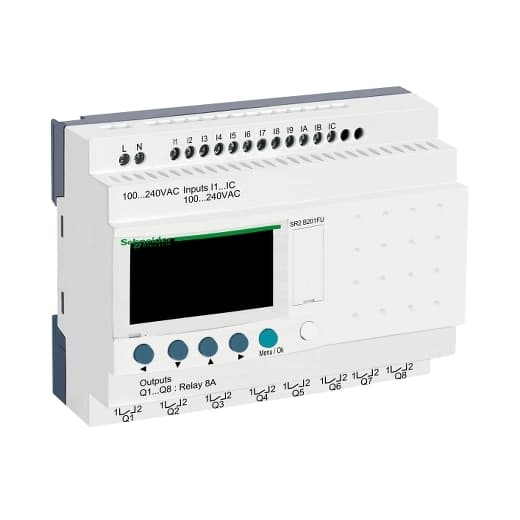

  Compact smart relay
• Discrete Input Number
  12
• Range Of Product
  Zelio Logic
• Backup Time
  10 years 77 °F (25 °C)
• Supply Voltage Limits
  85…264 V
• Cycle Time
  6…90 ms
• Current State 1 Guaranteed
  >= 0.17 mA discrete input)
• Checks
  Program memory on each power up
• Local Display
  With
• Supply Frequency
  50/60 Hz
• Output Thermal Current
  8 A for all 8 outputs relay output
• [Us] Rated Supply Voltage
  100...240 V AC
• Protection Type
  Against inversion of terminals (control instructions not executed)
• Input Impedance
  350 kOhm discrete input
• Mechanical Durability
  10000000 cycles relay output
• Net Weight
  0.84 lb(US) (0.38 kg)
• Discrete Input Voltage
  100...240 V AC
• Contacts Type And Composition
  NO relay output
• Number Of Outputs
  8 relay
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Discrete Input Current
0.6 mA
Tightening Torque
4.43 lbf.in (0.5 N.m)
Current State 0 Guaranteed
<= 0.5 mA discrete input)
Power Consumption In VA
11 VA without extension
Voltage State 1 Guaranteed
>= 79 V discrete input
Switching Capacity In Ma
>= 10 mA 12 V relay output)
Overvoltage Category
III EN/IEC 60664-1
Clock
With
Voltage State 0 Guaranteed
<= 40 V discrete input
Maximum Supply Current
100 mA 100 V without extension) 50 mA 240 V without extension)
Clock Drift
12 min/year 32…131 °F (0…55 °C) 6 s/month 77 °F (25 °C)
Number Or Control Scheme Lines
0…240 ladder 0…500 FBD
Discrete Input Frequency
57...63 Hz 47...53 Hz
Operating Rate In Hz
0.1 Hz at Ie)relay output 10 Hz no load)relay output
Output Voltage Limits
5...30 V DC relay output) 24...250 V AC
Response Time
50 ms ladder from state 0 to state 1)discrete input 50 ms with ladder programming (from state 1 to state 0) for discrete input 50...255 ms FBD from state 0 to state 1)discrete input 50...255 ms FBD from state 1 to state 0)discrete input

Electrical Durability
AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1 DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC
Connections - Terminals
Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x
