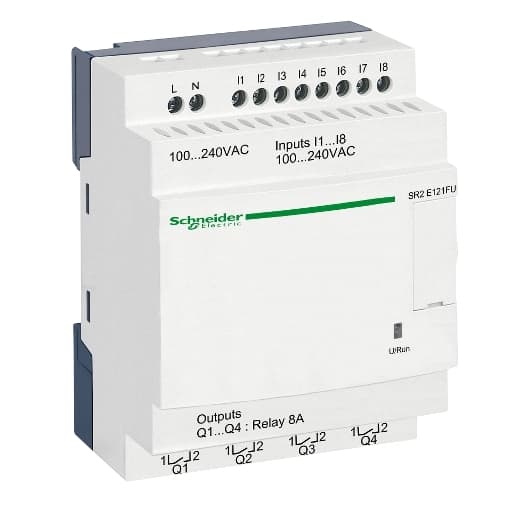

SR2E121FU Schneider Electric Industrial Automation Components

Product Details

• Supply Voltage Limits
  85…264 V
• Output Thermal Current
  8 A for all 4 outputs relay output
• Checks
  Program memory on each power up
• Cycle Time
  6…90 ms
• Discrete Input Voltage
  100...240 V AC
• Switching Capacity In Ma
  >= 10 mA 12 V relay output)
• Range Of Product
  Zelio Logic
• Isolation Voltage
  1780 V
• Input Impedance
  350 kOhm discrete input
• Current State 1 Guaranteed
  >= 0.17 mA discrete input)
• Protection Type
  Against inversion of terminals (control instructions not executed)
• Power Consumption In VA
  7 VA without extension
• Local Display
  Without
• [Us] Rated Supply Voltage
  100...240 V AC
• Backup Time
  10 years 77 °F (25 °C)
• Voltage State 0 Guaranteed
  <= 40 V discrete input
• Contacts Type And Composition
  NO relay output
• Product Or Component Type
  Compact smart relay
• Discrete Input Current
  0.6 mA
• Supply Frequency
  50/60 Hz
Voltage State 1 Guaranteed
>= 79 V discrete input
Number Of Outputs
4 relay
Discrete Input Number
8
Tightening Torque
4.43 lbf.in (0.5 N.m)
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Net Weight
0.49 lb(US) (0.22 kg)
Current State 0 Guaranteed
<= 0.5 mA discrete input)
Mechanical Durability
10000000 cycles relay output
Clock
With
Overvoltage Category
III EN/IEC 60664-1
Discrete Input Frequency
57...63 Hz 47...53 Hz
Operating Rate In Hz
0.1 Hz at Ie)relay output 10 Hz no load)relay output
Output Voltage Limits
5...30 V DC relay output) 24...250 V AC
Number Or Control Scheme Lines
0…240 ladder 0…500 FBD
Maximum Supply Current
30 mA 240 V without extension) 80 mA 100 V without extension)
Clock Drift
12 min/year 32…131 °F (0…55 °C) 6 s/month 77 °F (25 °C)
Electrical Durability
AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1 DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC
Response Time
50 ms ladder from state 0 to state 1)discrete input 50 ms with ladder programming (from state 1 to state 0) for discrete input 50...255 ms FBD from state 0 to state 1)discrete input 50...255 ms FBD from state 1 to state 0)discrete input

Connections - Terminals
Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x
