TVS3HWA10X Schneider Electric Electronic Components

TVS3HWA10X on Powermatic Associates
Schneider Electric

Part#:TVS3HWA10X

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

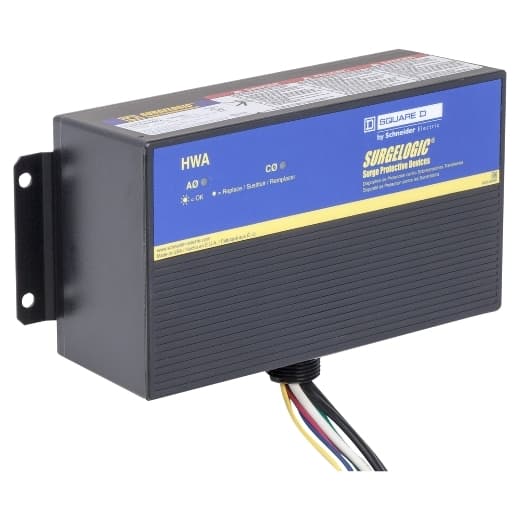

Surge Protect - HWA - 100kA - 120/240VAC - 3P4W - T4X

Product Details

  • Voltage Rating
    240/120 V HLD AC
  • Nominal Discharge Current
    20 kA
  • Product
    Surge protection device
  • Max Number Of Poles
    2
  • Cable Length
    33.6 in (853.44 mm)
  • Range
    Surgelogic
  • Mounting Location
    Bottom of enclosure
  • Wiring Configuration
    4-wire
  • Depth
    3.11 in (79 mm)
  • SCCR
    200 kA
  • Device Short Name
    HWA
  • Number Of Phases
    3 phase
  • Width
    8.62 in (219 mm)
  • MCOV
    150 V
  • Height
    4.80 in (122 mm)
  • Surge Current
    100 kA per phase
  • Device Mounting
    Surface Flush fixing kit
  • Connection
    Wire phase and neutral AWG 10 copper Wire ground AWG 10 copper Wire dry contacts AWG 22 copper
  • Local Signalling
    Status LED green per phase normal operation Status LED red per phase fault Alarm fault

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TVS3HWA10X on Powermatic Associates is $3,611.00. Order now.
